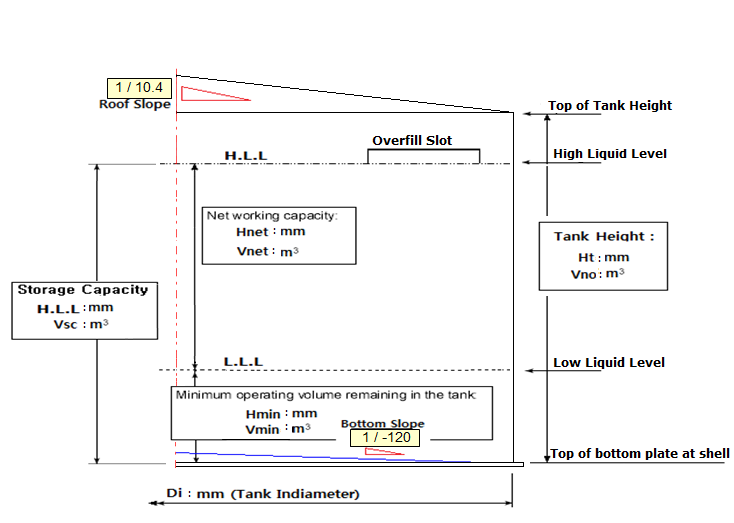

[전체오무리]   [전체펼치기]   번호 Description Symbol Unit     #1 edit 1 TANK NO. TK-97328  2 DESIGN CODE API 650 12th Edition　 API 620 12th Edition　 API 650  3 ROOF TYPE 1. Cone Roof (Column Sup't) 2. Cone Roof (Self Sup't) 3. Dome Roof 4. SDFRT (STEEL) 5. DDFRT (STEEL) 6. CIFRT (STEEL) 7. DIFRT (STEEL) 8. CIFRT (AL. Deck) 9. DIFRT (AL. Deck) DRT  5 Basic Data 2 CONTENTS NAME A CONTENT = Propane  3 SPECIFIC GRAVITY SG = 0.497  4 TANK DIAMETER D = mm 46500  5 TANK HEIGHT HT = mm 24000  6 DESIGN LIQUID LEVEL (for Shell Thick. Calculation) DLL = mm 22000  7 Hydrostatic-Test LEVEL HTL = mm 23000  8 INTERNAL PRESSURE Pi = mmAq 1300.0  9 EXTERNAL PRESSURE Pe = mmAq 50.00  10 DESIGN TEMPERATURE (Max.) DT = ℃ -10 ~ 150  11 MDMT MDMT = ℃ -25  12 SHELL JOINT EFFICIENCY E = 1.0  13 SHELL CA CA = mm 3.0  14 Main Shell Material Main = mm A516-70  15 2nd Shell Material 2nd = 175.0  16 2nd Material Quantity count from top QTY = 175.0  17 Total Shell Course Quantity Qty = course 10  18 Shell Basic Width Width = mm 2700  AAAA

]
