Head Type ; Spherical-Head |
|

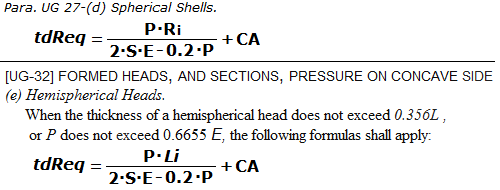

1.1) Spherical-Head °ßÀûµÎ²²(mm), CODE : ASME SEC. VIII, Div. 1, Tank Dia.(D)= 28.700 (m), DLL= 23.081 (m), ¼³°è¾Ð·Â, P = Pi+Ps = 0.5132 MPa, SG = 0.5 | 1.2) Tank Shell Plate Áß·® (Ton), ¼³°è¾Ð·Â, P = Pi+Ps = 0.4 + 0.11317 = 0.5132 MPa , SG = 0.5 | |||||||||||||||||||||||||||
±¸ºÐ | Vnom (£í©ø) | Dia. (m) | (90%) DLL(m) | ±¸ºÐ | SA516-60 t ¡Â 150t S=118 MPa | SA516-70 t ¡Â 150t S=138 MPa | SA537-CL1 t ¡Â 64t S=138 MPa | SA537-CL2 t ¡Â 64t S=158 MPa | SA240-304 SA240-316 S=138 MPa | SA240-304L SA240-316L S=115 MPa | A1106 (Hign Mn) S=220 MPa | A553-TYP1 (9% Ni) S=187 MPa | SA203-D (3.5% Ni) S=128 MPa | SA203-E (3.5% Ni) S=138 MPa | No. | Vnom (£í©ø) | Dia. (£í) | ±¸ºÐ | SA516-60 t ¡Â 150t S=118 MPa | SA516-70 t ¡Â 150t S=138 MPa | SA537-CL1 t ¡Â 64t S=138 MPa | SA537-CL2 t ¡Â 64t S=158 MPa | SA240-304 SA240-316 S=138 MPa | SA240-304L SA240-316L S=115 MPa | A1106 (Hign Mn) S=220 MPa | A553-TYP1 (9% Ni) S=187 MPa | SA203-D (3.5% Ni) S=128 MPa | SA203-E (3.5% Ni) S=138 MPa |
0 | 12377.8 | 28.700 | 23.081 | Cylind. Shell (mm) Spherical (mm) 2:1 Ell-Head (mm) 10% Dish-Head (mm) | 62.57 31.22 62.43 96.19 | 53.48 26.69 53.38 82.24 | 53.48 26.69 53.38 82.24 | 46.70 23.31 46.62 71.83 | 53.48 26.69 53.38 82.24 | 64.21 32.03 64.06 98.70 | 33.52 16.74 33.48 51.58 | 39.44 19.70 39.39 60.69 | 57.67 28.78 57.55 88.67 | 53.48 26.69 53.38 82.24 | 0 | 12377.8 | 28.700 | Cylind. Shell (Ton) Spherical (Ton) 2:1 Ell-Head (Ton) 10% Dish-Head (Ton) | 220.949 634.125 437.546 414.354 | 188.916 542.188 374.11 354.28 | 188.916 542.188 374.11 354.28 | 164.995 473.535 326.739 309.42 | 188.916 542.188 374.11 354.28 | 226.716 650.674 448.965 425.168 | 118.485 340.053 234.636 222.199 | 139.4 400.079 276.054 261.422 | 203.681 584.564 403.349 381.969 | 188.916 542.188 374.11 354.28 |
1.1) Spherical-Head °ßÀûµÎ²²(mm), CODE : ASME SEC. VIII, Div. 1, Design Internal Pressure, Pi = 0.4 MPa, SG = 0.5 | 1.2) (Straight Cylinder Shell Á¦¿ÜÇÑ ) Both-Head Plate Áß·® (Ton), Design Internal Pressure, Pi = 0.4 MPa, SG = 0.5 | |||||||||||||||||||||||||||
No. | Vnom (£í©ø) | Dia. (m) | (90%) DLL(m) | Pi+Ps=P (MPa) | SA516-60 t ¡Â 150t S=118 MPa | SA516-70 t ¡Â 150t S=138 MPa | SA537-CL1 t ¡Â 64t S=138 MPa | SA537-CL2 t ¡Â 64t S=158 MPa | SA240-304 SA240-316 S=138 MPa | SA240-304L SA240-316L S=115 MPa | A1106 (Hign Mn) S=220 MPa | A553-TYP1 (9% Ni) S=187 MPa | SA203-D (3.5% Ni) S=128 MPa | SA203-E (3.5% Ni) S=138 MPa | No. | Vnom (£í©ø) | Dia. (£í) | Head Plate Surface Area (£í©÷) | SA516-60 t ¡Â 150t S=118 MPa | SA516-70 t ¡Â 150t S=138 MPa | SA537-CL1 t ¡Â 64t S=138 MPa | SA537-CL2 t ¡Â 64t S=158 MPa | SA240-304 SA240-316 S=138 MPa | SA240-304L SA240-316L S=115 MPa | A1106 (Hign Mn) S=220 MPa | A553-TYP1 (9% Ni) S=187 MPa | SA203-D (3.5% Ni) S=128 MPa | SA203-E (3.5% Ni) S=138 MPa |
1 | 4.2 | 2.000 | 1.608 | 0.4+0.00789 | 1.73 | 1.48 | 1.48 | 1.29 | 1.48 | 1.77 | 0.93 | 1.09 | 1.59 | 1.48 | 1 | 4.2 | 2.000 | 12.566 | 0.171 | 0.146 | 0.146 | 0.127 | 0.146 | 0.175 | 0.091 | 0.108 | 0.157 | 0.146 |
2 | 5.6 | 2.200 | 1.769 | 0.4+0.00868 | 1.91 | 1.63 | 1.63 | 1.42 | 1.63 | 1.96 | 1.02 | 1.20 | 1.76 | 1.63 | 2 | 5.6 | 2.200 | 15.205 | 0.227 | 0.194 | 0.194 | 0.17 | 0.194 | 0.233 | 0.122 | 0.144 | 0.21 | 0.194 |
3 | 7.2 | 2.400 | 1.930 | 0.4+0.00946 | 2.08 | 1.78 | 1.78 | 1.56 | 1.78 | 2.14 | 1.12 | 1.31 | 1.92 | 1.78 | 3 | 7.2 | 2.400 | 18.096 | 0.296 | 0.253 | 0.253 | 0.221 | 0.253 | 0.304 | 0.159 | 0.187 | 0.273 | 0.253 |
4 | 9.2 | 2.600 | 2.091 | 0.4+0.01025 | 2.26 | 1.93 | 1.93 | 1.69 | 1.93 | 2.32 | 1.21 | 1.43 | 2.08 | 1.93 | 4 | 9.2 | 2.600 | 21.237 | 0.377 | 0.322 | 0.322 | 0.281 | 0.322 | 0.387 | 0.202 | 0.238 | 0.347 | 0.322 |
5 | 11.5 | 2.800 | 2.252 | 0.4+0.01104 | 2.44 | 2.09 | 2.09 | 1.82 | 2.09 | 2.50 | 1.31 | 1.54 | 2.25 | 2.09 | 5 | 11.5 | 2.800 | 24.630 | 0.472 | 0.403 | 0.403 | 0.352 | 0.403 | 0.484 | 0.253 | 0.298 | 0.435 | 0.403 |
6 | 14.1 | 3.000 | 2.413 | 0.4+0.01183 | 2.62 | 2.24 | 2.24 | 1.96 | 2.24 | 2.69 | 1.40 | 1.65 | 2.41 | 2.24 | 6 | 14.1 | 3.000 | 28.274 | 0.581 | 0.497 | 0.497 | 0.434 | 0.497 | 0.596 | 0.312 | 0.367 | 0.536 | 0.497 |
7 | 17.2 | 3.200 | 2.573 | 0.4+0.01262 | 2.80 | 2.39 | 2.39 | 2.09 | 2.39 | 2.87 | 1.50 | 1.77 | 2.58 | 2.39 | 7 | 17.2 | 3.200 | 32.170 | 0.707 | 0.604 | 0.604 | 0.528 | 0.604 | 0.725 | 0.379 | 0.446 | 0.651 | 0.604 |
8 | 20.6 | 3.400 | 2.734 | 0.4+0.01341 | 2.98 | 2.55 | 2.55 | 2.22 | 2.55 | 3.06 | 1.60 | 1.88 | 2.75 | 2.55 | 8 | 20.6 | 3.400 | 36.317 | 0.849 | 0.726 | 0.726 | 0.634 | 0.726 | 0.871 | 0.455 | 0.536 | 0.783 | 0.726 |
9 | 24.4 | 3.600 | 2.895 | 0.4+0.01420 | 3.16 | 2.70 | 2.70 | 2.36 | 2.70 | 3.24 | 1.69 | 1.99 | 2.91 | 2.70 | 9 | 24.4 | 3.600 | 40.715 | 1.01 | 0.864 | 0.864 | 0.754 | 0.864 | 1.036 | 0.542 | 0.637 | 0.931 | 0.864 |
10 | 28.7 | 3.800 | 3.056 | 0.4+0.01498 | 3.34 | 2.86 | 2.86 | 2.50 | 2.86 | 3.43 | 1.79 | 2.11 | 3.08 | 2.86 | 10 | 28.7 | 3.800 | 45.365 | 1.19 | 1.018 | 1.018 | 0.889 | 1.018 | 1.221 | 0.638 | 0.751 | 1.097 | 1.018 |
11 | 33.5 | 4.000 | 3.217 | 0.4+0.01577 | 3.52 | 3.01 | 3.01 | 2.63 | 3.01 | 3.62 | 1.89 | 2.22 | 3.25 | 3.01 | 11 | 33.5 | 4.000 | 50.265 | 1.391 | 1.189 | 1.189 | 1.039 | 1.189 | 1.427 | 0.746 | 0.878 | 1.282 | 1.189 |
12 | 38.8 | 4.200 | 3.378 | 0.4+0.01656 | 3.71 | 3.17 | 3.17 | 2.77 | 3.17 | 3.80 | 1.99 | 2.34 | 3.42 | 3.17 | 12 | 38.8 | 4.200 | 55.418 | 1.613 | 1.379 | 1.379 | 1.205 | 1.379 | 1.655 | 0.865 | 1.018 | 1.487 | 1.379 |
13 | 44.6 | 4.400 | 3.538 | 0.4+0.01735 | 3.89 | 3.33 | 3.33 | 2.91 | 3.33 | 3.99 | 2.09 | 2.46 | 3.59 | 3.33 | 13 | 44.6 | 4.400 | 60.821 | 1.858 | 1.589 | 1.589 | 1.388 | 1.589 | 1.907 | 0.997 | 1.172 | 1.713 | 1.589 |
14 | 51.0 | 4.600 | 3.699 | 0.4+0.01814 | 4.08 | 3.49 | 3.49 | 3.04 | 3.49 | 4.18 | 2.19 | 2.57 | 3.76 | 3.49 | 14 | 51.0 | 4.600 | 66.476 | 2.127 | 1.819 | 1.819 | 1.589 | 1.819 | 2.183 | 1.141 | 1.342 | 1.961 | 1.819 |
15 | 57.9 | 4.800 | 3.860 | 0.4+0.01893 | 4.26 | 3.64 | 3.64 | 3.18 | 3.64 | 4.37 | 2.29 | 2.69 | 3.93 | 3.64 | 15 | 57.9 | 4.800 | 72.382 | 2.422 | 2.07 | 2.07 | 1.808 | 2.07 | 2.485 | 1.299 | 1.528 | 2.232 | 2.07 |
16 | 65.4 | 5.000 | 4.021 | 0.4+0.01972 | 4.45 | 3.80 | 3.80 | 3.32 | 3.80 | 4.56 | 2.39 | 2.81 | 4.10 | 3.80 | 16 | 65.4 | 5.000 | 78.540 | 2.742 | 2.345 | 2.345 | 2.048 | 2.345 | 2.814 | 1.471 | 1.73 | 2.528 | 2.345 |
17 | 73.6 | 5.200 | 4.182 | 0.4+0.02050 | 4.63 | 3.96 | 3.96 | 3.46 | 3.96 | 4.76 | 2.49 | 2.92 | 4.27 | 3.96 | 17 | 73.6 | 5.200 | 84.949 | 3.09 | 2.642 | 2.642 | 2.308 | 2.642 | 3.171 | 1.657 | 1.95 | 2.849 | 2.642 |
18 | 82.4 | 5.400 | 4.343 | 0.4+0.02129 | 4.82 | 4.12 | 4.12 | 3.60 | 4.12 | 4.95 | 2.59 | 3.04 | 4.44 | 4.12 | 18 | 82.4 | 5.400 | 91.609 | 3.467 | 2.965 | 2.965 | 2.589 | 2.965 | 3.558 | 1.859 | 2.188 | 3.196 | 2.965 |
19 | 92.0 | 5.600 | 4.504 | 0.4+0.02208 | 5.01 | 4.28 | 4.28 | 3.74 | 4.28 | 5.14 | 2.69 | 3.16 | 4.62 | 4.28 | 19 | 92.0 | 5.600 | 98.520 | 3.874 | 3.313 | 3.313 | 2.893 | 3.313 | 3.975 | 2.078 | 2.444 | 3.572 | 3.313 |
20 | 102.2 | 5.800 | 4.664 | 0.4+0.02287 | 5.20 | 4.44 | 4.44 | 3.88 | 4.44 | 5.33 | 2.79 | 3.28 | 4.79 | 4.44 | 20 | 102.2 | 5.800 | 105.683 | 4.312 | 3.687 | 3.687 | 3.22 | 3.687 | 4.425 | 2.313 | 2.721 | 3.975 | 3.687 |
21 | 113.1 | 6.000 | 4.825 | 0.4+0.02366 | 5.39 | 4.61 | 4.61 | 4.02 | 4.61 | 5.53 | 2.89 | 3.40 | 4.97 | 4.61 | 21 | 113.1 | 6.000 | 113.097 | 4.783 | 4.09 | 4.09 | 3.572 | 4.09 | 4.908 | 2.565 | 3.018 | 4.409 | 4.09 |
22 | 124.8 | 6.200 | 4.986 | 0.4+0.02445 | 5.58 | 4.77 | 4.77 | 4.17 | 4.77 | 5.72 | 2.99 | 3.52 | 5.14 | 4.77 | 22 | 124.8 | 6.200 | 120.763 | 5.287 | 4.521 | 4.521 | 3.948 | 4.521 | 5.425 | 2.835 | 3.336 | 4.874 | 4.521 |
23 | 137.3 | 6.400 | 5.147 | 0.4+0.02524 | 5.77 | 4.93 | 4.93 | 4.31 | 4.93 | 5.92 | 3.09 | 3.64 | 5.32 | 4.93 | 23 | 137.3 | 6.400 | 128.680 | 5.826 | 4.982 | 4.982 | 4.351 | 4.982 | 5.979 | 3.125 | 3.676 | 5.371 | 4.982 |
24 | 150.5 | 6.600 | 5.308 | 0.4+0.02603 | 5.96 | 5.10 | 5.10 | 4.45 | 5.10 | 6.11 | 3.20 | 3.76 | 5.49 | 5.10 | 24 | 150.5 | 6.600 | 136.848 | 6.402 | 5.474 | 5.474 | 4.781 | 5.474 | 6.569 | 3.433 | 4.039 | 5.901 | 5.474 |
25 | 164.6 | 6.800 | 5.469 | 0.4+0.02681 | 6.15 | 5.26 | 5.26 | 4.59 | 5.26 | 6.31 | 3.30 | 3.88 | 5.67 | 5.26 | 25 | 164.6 | 6.800 | 145.267 | 7.015 | 5.998 | 5.998 | 5.238 | 5.998 | 7.198 | 3.762 | 4.426 | 6.466 | 5.998 |
26 | 179.6 | 7.000 | 5.629 | 0.4+0.02760 | 6.34 | 5.42 | 5.42 | 4.74 | 5.42 | 6.51 | 3.40 | 4.00 | 5.85 | 5.42 | 26 | 179.6 | 7.000 | 153.938 | 7.666 | 6.555 | 6.555 | 5.725 | 6.555 | 7.866 | 4.111 | 4.837 | 7.067 | 6.555 |
27 | 195.4 | 7.200 | 5.790 | 0.4+0.02839 | 6.54 | 5.59 | 5.59 | 4.88 | 5.59 | 6.71 | 3.51 | 4.12 | 6.03 | 5.59 | 27 | 195.4 | 7.200 | 162.860 | 8.357 | 7.146 | 7.146 | 6.241 | 7.146 | 8.576 | 4.482 | 5.273 | 7.704 | 7.146 |
28 | 212.2 | 7.400 | 5.951 | 0.4+0.02918 | 6.73 | 5.76 | 5.76 | 5.03 | 5.76 | 6.91 | 3.61 | 4.25 | 6.21 | 5.76 | 28 | 212.2 | 7.400 | 172.034 | 9.09 | 7.772 | 7.772 | 6.788 | 7.772 | 9.327 | 4.875 | 5.735 | 8.38 | 7.772 |
29 | 229.8 | 7.600 | 6.112 | 0.4+0.02997 | 6.93 | 5.92 | 5.92 | 5.17 | 5.92 | 7.11 | 3.71 | 4.37 | 6.38 | 5.92 | 29 | 229.8 | 7.600 | 181.458 | 9.865 | 8.435 | 8.435 | 7.367 | 8.435 | 10.123 | 5.291 | 6.224 | 9.094 | 8.435 |
30 | 248.5 | 7.800 | 6.273 | 0.4+0.03076 | 7.12 | 6.09 | 6.09 | 5.32 | 6.09 | 7.31 | 3.82 | 4.49 | 6.56 | 6.09 | 30 | 248.5 | 7.800 | 191.134 | 10.684 | 9.136 | 9.136 | 7.979 | 9.136 | 10.963 | 5.73 | 6.741 | 9.849 | 9.136 |
31 | 268.1 | 8.000 | 6.434 | 0.4+0.03155 | 7.32 | 6.26 | 6.26 | 5.46 | 6.26 | 7.51 | 3.92 | 4.62 | 6.75 | 6.26 | 31 | 268.1 | 8.000 | 201.062 | 11.549 | 9.874 | 9.874 | 8.624 | 9.874 | 11.85 | 6.193 | 7.286 | 10.646 | 9.874 |
32 | 288.7 | 8.200 | 6.594 | 0.4+0.03233 | 7.51 | 6.42 | 6.42 | 5.61 | 6.42 | 7.71 | 4.03 | 4.74 | 6.93 | 6.42 | 32 | 288.7 | 8.200 | 211.241 | 12.459 | 10.653 | 10.653 | 9.304 | 10.653 | 12.785 | 6.682 | 7.861 | 11.486 | 10.653 |
33 | 310.3 | 8.400 | 6.755 | 0.4+0.03312 | 7.71 | 6.59 | 6.59 | 5.76 | 6.59 | 7.91 | 4.14 | 4.87 | 7.11 | 6.59 | 33 | 310.3 | 8.400 | 221.671 | 13.418 | 11.473 | 11.473 | 10.02 | 11.473 | 13.768 | 7.196 | 8.466 | 12.369 | 11.473 |
34 | 333.0 | 8.600 | 6.916 | 0.4+0.03391 | 7.91 | 6.76 | 6.76 | 5.91 | 6.76 | 8.12 | 4.24 | 4.99 | 7.29 | 6.76 | 34 | 333.0 | 8.600 | 232.352 | 14.426 | 12.334 | 12.334 | 10.773 | 12.334 | 14.802 | 7.736 | 9.102 | 13.298 | 12.334 |
35 | 356.8 | 8.800 | 7.077 | 0.4+0.03470 | 8.11 | 6.93 | 6.93 | 6.05 | 6.93 | 8.32 | 4.35 | 5.12 | 7.47 | 6.93 | 35 | 356.8 | 8.800 | 243.285 | 15.484 | 13.239 | 13.239 | 11.563 | 13.239 | 15.888 | 8.303 | 9.769 | 14.274 | 13.239 |
36 | 381.7 | 9.000 | 7.238 | 0.4+0.03549 | 8.31 | 7.10 | 7.10 | 6.20 | 7.10 | 8.52 | 4.45 | 5.24 | 7.66 | 7.10 | 36 | 381.7 | 9.000 | 254.469 | 16.594 | 14.188 | 14.188 | 12.392 | 14.188 | 17.027 | 8.899 | 10.469 | 15.297 | 14.188 |
37 | 407.7 | 9.200 | 7.399 | 0.4+0.03628 | 8.51 | 7.27 | 7.27 | 6.35 | 7.27 | 8.73 | 4.56 | 5.37 | 7.84 | 7.27 | 37 | 407.7 | 9.200 | 265.904 | 17.757 | 15.183 | 15.183 | 13.26 | 15.183 | 18.22 | 9.522 | 11.203 | 16.369 | 15.183 |
38 | 434.9 | 9.400 | 7.559 | 0.4+0.03707 | 8.71 | 7.45 | 7.45 | 6.50 | 7.45 | 8.93 | 4.67 | 5.49 | 8.03 | 7.45 | 38 | 434.9 | 9.400 | 277.591 | 18.974 | 16.224 | 16.224 | 14.169 | 16.224 | 19.47 | 10.175 | 11.972 | 17.492 | 16.224 |
39 | 463.2 | 9.600 | 7.720 | 0.4+0.03786 | 8.91 | 7.62 | 7.62 | 6.65 | 7.62 | 9.14 | 4.78 | 5.62 | 8.21 | 7.62 | 39 | 463.2 | 9.600 | 289.529 | 20.248 | 17.313 | 17.313 | 15.121 | 17.313 | 20.776 | 10.858 | 12.775 | 18.666 | 17.313 |
40 | 381.7 | 9.000 | 7.238 | 0.4+0.03549 | 8.31 | 7.10 | 7.10 | 6.20 | 7.10 | 8.52 | 4.45 | 5.24 | 7.66 | 7.10 | 40 | 381.7 | 9.000 | 254.469 | 16.594 | 14.188 | 14.188 | 12.392 | 14.188 | 17.027 | 8.899 | 10.469 | 15.297 | 14.188 |
41 | 523.6 | 10.000 | 8.042 | 0.4+0.03943 | 9.31 | 7.96 | 7.96 | 6.95 | 7.96 | 9.56 | 4.99 | 5.88 | 8.59 | 7.96 | 41 | 523.6 | 10.000 | 314.159 | 22.968 | 19.639 | 19.639 | 17.152 | 19.639 | 23.568 | 12.317 | 14.491 | 21.173 | 19.639 |
42 | 696.9 | 11.000 | 8.846 | 0.4+0.04338 | 10.34 | 8.84 | 8.84 | 7.72 | 8.84 | 10.61 | 5.54 | 6.52 | 9.53 | 8.84 | 42 | 696.9 | 11.000 | 380.133 | 30.845 | 26.374 | 26.374 | 23.034 | 26.374 | 31.65 | 16.541 | 19.461 | 28.435 | 26.374 |
43 | 904.8 | 12.000 | 9.650 | 0.4+0.04732 | 11.38 | 9.73 | 9.73 | 8.50 | 9.73 | 11.67 | 6.10 | 7.18 | 10.49 | 9.73 | 43 | 904.8 | 12.000 | 452.389 | 40.402 | 34.545 | 34.545 | 30.171 | 34.545 | 41.456 | 21.666 | 25.491 | 37.245 | 34.545 |
44 | 1150.3 | 13.000 | 10.455 | 0.4+0.05126 | 12.43 | 10.63 | 10.63 | 9.28 | 10.63 | 12.76 | 6.67 | 7.84 | 11.46 | 10.63 | 44 | 1150.3 | 13.000 | 530.929 | 51.821 | 44.308 | 44.308 | 38.698 | 44.308 | 53.173 | 27.79 | 32.695 | 47.771 | 44.308 |
45 | 1436.8 | 14.000 | 11.259 | 0.4+0.05521 | 13.51 | 11.55 | 11.55 | 10.09 | 11.55 | 13.86 | 7.24 | 8.52 | 12.45 | 11.55 | 45 | 1436.8 | 14.000 | 615.752 | 65.289 | 55.823 | 55.823 | 48.755 | 55.823 | 66.992 | 35.012 | 41.192 | 60.186 | 55.823 |
46 | 1767.1 | 15.000 | 12.063 | 0.4+0.05915 | 14.60 | 12.48 | 12.48 | 10.90 | 12.48 | 14.98 | 7.83 | 9.21 | 13.46 | 12.48 | 46 | 1767.1 | 15.000 | 706.858 | 80.998 | 69.255 | 69.255 | 60.486 | 69.255 | 83.112 | 43.436 | 51.104 | 74.668 | 69.255 |
47 | 2144.7 | 16.000 | 12.867 | 0.4+0.06309 | 15.70 | 13.43 | 13.43 | 11.73 | 13.43 | 16.11 | 8.42 | 9.91 | 14.48 | 13.43 | 47 | 2144.7 | 16.000 | 804.248 | 99.146 | 84.772 | 84.772 | 74.038 | 84.772 | 101.733 | 53.169 | 62.554 | 91.397 | 84.772 |
48 | 2572.4 | 17.000 | 13.671 | 0.4+0.06704 | 16.83 | 14.39 | 14.39 | 12.57 | 14.39 | 17.27 | 9.02 | 10.62 | 15.51 | 14.39 | 48 | 2572.4 | 17.000 | 907.920 | 119.935 | 102.547 | 102.547 | 89.563 | 102.547 | 123.065 | 64.317 | 75.67 | 110.562 | 102.547 |
49 | 3053.6 | 18.000 | 14.476 | 0.4+0.07098 | 17.97 | 15.36 | 15.36 | 13.42 | 15.36 | 18.44 | 9.64 | 11.34 | 16.56 | 15.36 | 49 | 3053.6 | 18.000 | 1017.876 | 143.572 | 122.757 | 122.757 | 107.214 | 122.757 | 147.319 | 76.993 | 90.583 | 132.351 | 122.757 |
50 | 3591.4 | 19.000 | 15.280 | 0.4+0.07492 | 19.13 | 16.35 | 16.35 | 14.28 | 16.35 | 19.62 | 10.26 | 12.07 | 17.63 | 16.35 | 50 | 3591.4 | 19.000 | 1134.115 | 170.269 | 145.584 | 145.584 | 127.15 | 145.584 | 174.713 | 91.309 | 107.426 | 156.962 | 145.584 |
51 | 4188.8 | 20.000 | 16.084 | 0.4+0.07887 | 20.30 | 17.36 | 17.36 | 15.16 | 17.36 | 20.83 | 10.89 | 12.81 | 18.71 | 17.36 | 51 | 4188.8 | 20.000 | 1256.637 | 200.243 | 171.212 | 171.212 | 149.533 | 171.212 | 205.469 | 107.383 | 126.338 | 184.593 | 171.212 |
52 | 4849.0 | 21.000 | 16.888 | 0.4+0.08281 | 21.49 | 18.37 | 18.37 | 16.05 | 18.37 | 22.05 | 11.52 | 13.56 | 19.81 | 18.37 | 52 | 4849.0 | 21.000 | 1385.442 | 233.716 | 199.832 | 199.832 | 174.529 | 199.832 | 239.815 | 125.333 | 147.456 | 215.45 | 199.832 |
53 | 5575.3 | 22.000 | 17.692 | 0.4+0.08675 | 22.70 | 19.41 | 19.41 | 16.95 | 19.41 | 23.29 | 12.17 | 14.32 | 20.92 | 19.41 | 53 | 5575.3 | 22.000 | 1520.531 | 270.914 | 231.638 | 231.638 | 202.307 | 231.638 | 277.985 | 145.281 | 170.925 | 249.741 | 231.638 |
54 | 6370.6 | 23.000 | 18.497 | 0.4+0.09069 | 23.92 | 20.45 | 20.45 | 17.86 | 20.45 | 24.55 | 12.83 | 15.09 | 22.05 | 20.45 | 54 | 6370.6 | 23.000 | 1661.903 | 312.071 | 266.827 | 266.827 | 233.041 | 266.827 | 320.215 | 167.351 | 196.891 | 287.681 | 266.827 |
55 | 7238.2 | 24.000 | 19.301 | 0.4+0.09464 | 25.16 | 21.51 | 21.51 | 18.79 | 21.51 | 25.82 | 13.49 | 15.87 | 23.20 | 21.51 | 55 | 7238.2 | 24.000 | 1809.557 | 357.422 | 305.603 | 305.603 | 266.907 | 305.603 | 366.75 | 191.671 | 225.504 | 329.487 | 305.603 |
56 | 8181.2 | 25.000 | 20.105 | 0.4+0.09858 | 26.42 | 22.59 | 22.59 | 19.73 | 22.59 | 27.11 | 14.17 | 16.67 | 24.35 | 22.59 | 56 | 8181.2 | 25.000 | 1963.495 | 407.209 | 348.172 | 348.172 | 304.085 | 348.172 | 417.836 | 218.369 | 256.915 | 375.383 | 348.172 |
57 | 9202.8 | 26.000 | 20.909 | 0.4+0.10252 | 27.69 | 23.68 | 23.68 | 20.68 | 23.68 | 28.42 | 14.85 | 17.47 | 25.53 | 23.68 | 57 | 9202.8 | 26.000 | 2123.717 | 461.679 | 394.744 | 394.744 | 344.761 | 394.744 | 473.728 | 247.579 | 291.281 | 425.596 | 394.744 |
58 | 10306.0 | 27.000 | 21.713 | 0.4+0.10647 | 28.98 | 24.78 | 24.78 | 21.64 | 24.78 | 29.74 | 15.54 | 18.29 | 26.72 | 24.78 | 58 | 10306.0 | 27.000 | 2290.221 | 521.083 | 445.536 | 445.536 | 389.121 | 445.536 | 534.683 | 279.435 | 328.76 | 480.358 | 445.536 |
59 | 11494.0 | 28.000 | 22.518 | 0.4+0.11041 | 30.29 | 25.90 | 25.90 | 22.62 | 25.90 | 31.08 | 16.24 | 19.11 | 27.92 | 25.90 | 59 | 11494.0 | 28.000 | 2463.009 | 585.679 | 500.767 | 500.767 | 437.358 | 500.767 | 600.964 | 314.074 | 369.514 | 539.905 | 500.767 |
60 | 12770.1 | 29.000 | 23.322 | 0.4+0.11435 | 31.62 | 27.03 | 27.03 | 23.61 | 27.03 | 32.44 | 16.95 | 19.95 | 29.15 | 27.03 | 60 | 12770.1 | 29.000 | 2642.079 | 655.727 | 560.659 | 560.659 | 489.666 | 560.659 | 672.841 | 351.637 | 413.708 | 604.478 | 560.659 |
61 | 14137.2 | 30.000 | 24.126 | 0.4+0.11830 | 32.96 | 28.18 | 28.18 | 24.61 | 28.18 | 33.82 | 17.67 | 20.79 | 30.38 | 28.18 | 61 | 14137.2 | 30.000 | 2827.433 | 731.495 | 625.441 | 625.441 | 546.246 | 625.441 | 750.586 | 392.267 | 461.51 | 674.324 | 625.441 |
62 | 15598.5 | 31.000 | 24.930 | 0.4+0.12224 | 34.31 | 29.34 | 29.34 | 25.62 | 29.34 | 35.21 | 18.40 | 21.65 | 31.63 | 29.34 | 62 | 15598.5 | 31.000 | 3019.071 | 813.253 | 695.346 | 695.346 | 607.298 | 695.346 | 834.478 | 436.11 | 513.092 | 749.692 | 695.346 |
63 | 17157.3 | 32.000 | 25.734 | 0.4+0.12618 | 35.69 | 30.52 | 30.52 | 26.65 | 30.52 | 36.62 | 19.14 | 22.52 | 32.90 | 30.52 | 63 | 17157.3 | 32.000 | 3216.991 | 901.278 | 770.608 | 770.608 | 673.031 | 770.608 | 924.801 | 483.313 | 568.627 | 830.837 | 770.608 |
64 | 18816.6 | 33.000 | 26.539 | 0.4+0.13013 | 37.08 | 31.70 | 31.70 | 27.69 | 31.70 | 38.05 | 19.88 | 23.39 | 34.18 | 31.70 | 64 | 18816.6 | 33.000 | 3421.194 | 995.852 | 851.47 | 851.47 | 743.653 | 851.47 | 1021.8 | 534.027 | 628.294 | 918.019 | 851.47 |
65 | 20579.5 | 34.000 | 27.343 | 0.4+0.13407 | 38.49 | 32.91 | 32.91 | 28.74 | 32.91 | 39.49 | 20.64 | 24.28 | 35.48 | 32.91 | 65 | 20579.5 | 34.000 | 3631.681 | 1097.3 | 938.175 | 938.175 | 819.379 | 938.175 | 1125.9 | 588.407 | 692.273 | 1011.5 | 938.175 |
66 | 22449.3 | 35.000 | 28.147 | 0.4+0.13801 | 39.91 | 34.13 | 34.13 | 29.81 | 34.13 | 21.40 | 25.18 | 36.79 | 34.13 | 66 | 22449.3 | 35.000 | 3848.451 | 1205.8 | 1031.0 | 1031.0 | 900.426 | 1031.0 | 1237.3 | 646.607 | 760.747 | 1111.6 | 1031.0 | |
67 | 24429.0 | 36.000 | 28.951 | 0.4+0.14196 | 41.35 | 35.36 | 35.36 | 30.88 | 35.36 | 22.18 | 26.09 | 38.12 | 35.36 | 67 | 24429.0 | 36.000 | 4071.504 | 1321.8 | 1130.1 | 1130.1 | 987.015 | 1130.1 | 1356.2 | 708.788 | 833.904 | 1218.4 | 1130.1 | |
68 | 26521.8 | 37.000 | 29.755 | 0.4+0.14590 | 42.81 | 36.61 | 36.61 | 31.97 | 36.61 | 22.96 | 27.01 | 39.47 | 36.61 | 68 | 26521.8 | 37.000 | 4300.840 | 1445.4 | 1235.9 | 1235.9 | 1079.4 | 1235.9 | 1483.2 | 775.11 | 911.934 | 1332.5 | 1235.9 | |
69 | 28730.9 | 38.000 | 30.560 | 0.4+0.14984 | 44.29 | 37.87 | 37.87 | 33.07 | 37.87 | 23.75 | 27.94 | 40.83 | 37.87 | 69 | 28730.9 | 38.000 | 4536.460 | 1577.1 | 1348.5 | 1348.5 | 1177.7 | 1348.5 | 1618.3 | 845.737 | 995.029 | 1453.9 | 1348.5 | |
70 | 31059.4 | 39.000 | 31.364 | 0.4+0.15379 | 45.78 | 39.14 | 39.14 | 34.19 | 39.14 | 24.55 | 28.88 | 42.20 | 39.14 | 70 | 31059.4 | 39.000 | 4778.362 | 1717.2 | 1468.2 | 1468.2 | 1282.3 | 1468.2 | 1762.0 | 920.837 | 1083.4 | 1583.0 | 1468.2 | |
71 | 33510.3 | 40.000 | 32.168 | 0.4+0.15773 | 47.29 | 40.43 | 40.43 | 35.31 | 25.36 | 29.83 | 43.59 | 40.43 | 71 | 33510.3 | 40.000 | 5026.548 | 1865.9 | 1595.4 | 1595.4 | 1393.3 | 1595.4 | 1914.6 | 1000.6 | 1177.2 | 1720.1 | 1595.4 | ||
72 | 36087.0 | 41.000 | 32.972 | 0.4+0.16167 | 48.81 | 41.74 | 41.74 | 36.45 | 26.18 | 30.80 | 45.00 | 41.74 | 72 | 36087.0 | 41.000 | 5281.017 | 2023.6 | 1730.2 | 1730.2 | 1511.1 | 1730.2 | 2076.4 | 1085.1 | 1276.7 | 1865.4 | 1730.2 | ||
73 | 38792.4 | 42.000 | 33.776 | 0.4+0.16562 | 50.35 | 43.05 | 43.05 | 37.60 | 27.00 | 31.77 | 46.42 | 43.05 | 73 | 38792.4 | 42.000 | 5541.769 | 2190.6 | 1873.0 | 1873.0 | 1635.8 | 1873.0 | 2247.7 | 1174.7 | 1382.0 | 2019.4 | 1873.0 | ||
74 | 41629.8 | 43.000 | 34.581 | 0.4+0.16956 | 51.91 | 44.39 | 44.39 | 38.77 | 27.84 | 32.75 | 47.86 | 44.39 | 74 | 41629.8 | 43.000 | 5808.805 | 2367.2 | 2024.0 | 2024.0 | 1767.7 | 2024.0 | 2429.0 | 1269.4 | 1493.5 | 2182.2 | 2024.0 | ||
75 | 44602.2 | 44.000 | 35.385 | 0.4+0.17350 | 53.49 | 45.73 | 45.73 | 39.94 | 28.68 | 33.75 | 49.31 | 45.73 | 75 | 44602.2 | 44.000 | 6082.123 | 2553.8 | 2183.5 | 2183.5 | 1907.0 | 2183.5 | 2620.4 | 1369.4 | 1611.2 | 2354.2 | 2183.5 | ||
76 | 47712.9 | 45.000 | 36.189 | 0.4+0.17745 | 55.08 | 47.09 | 47.09 | 41.13 | 29.54 | 34.75 | 50.78 | 47.09 | 76 | 47712.9 | 45.000 | 6361.725 | 2750.7 | 2351.9 | 2351.9 | 2054.0 | 2351.9 | 2822.5 | 1475.0 | 1735.4 | 2535.7 | 2351.9 | ||
77 | 50965.0 | 46.000 | 36.993 | 0.4+0.18139 | 56.69 | 48.47 | 48.47 | 42.33 | 30.40 | 35.77 | 52.26 | 48.47 | 77 | 50965.0 | 46.000 | 6647.610 | 2958.2 | 2529.3 | 2529.3 | 2209.0 | 2529.3 | 3035.4 | 1586.3 | 1866.4 | 2727.0 | 2529.3 | ||
78 | 54361.6 | 47.000 | 37.797 | 0.4+0.18533 | 58.31 | 49.86 | 49.86 | 43.55 | 31.27 | 36.79 | 53.76 | 49.86 | 78 | 54361.6 | 47.000 | 6939.778 | 3176.8 | 2716.2 | 2716.2 | 2372.2 | 2716.2 | 3259.7 | 1703.5 | 2004.2 | 2928.5 | 2716.2 | ||
79 | 57905.8 | 48.000 | 38.602 | 0.4+0.18928 | 59.96 | 51.26 | 51.26 | 44.77 | 32.15 | 37.83 | 55.27 | 51.26 | 79 | 57905.8 | 48.000 | 7238.229 | 3406.7 | 2912.8 | 2912.8 | 2543.9 | 2912.8 | 3495.6 | 1826.8 | 2149.3 | 3140.5 | 2912.8 | ||
80 | 61600.9 | 49.000 | 39.406 | 0.4+0.19322 | 61.62 | 52.68 | 52.68 | 46.01 | 33.04 | 38.87 | 56.80 | 52.68 | 80 | 61600.9 | 49.000 | 7542.964 | 3648.4 | 3119.4 | 3119.4 | 2724.4 | 3119.4 | 3743.6 | 1956.4 | 2301.8 | 3363.2 | 3119.4 | ||
81 | 65449.8 | 50.000 | 40.210 | 0.4+0.19716 | 63.29 | 54.11 | 54.11 | 47.26 | 33.94 | 39.93 | 58.34 | 54.11 | 81 | 65449.8 | 50.000 | 7853.982 | 3902.1 | 3336.3 | 3336.3 | 2913.9 | 3336.3 | 4004.0 | 2092.5 | 2461.8 | 3597.1 | 3336.3 |
1.1) Spherical-Head °ßÀûµÎ²²(mm), CODE : ASME SEC. VIII, Div. 1, Design Internal Pressure, Pi = 0.4 MPa, SG = 0.5 | 1.2) (Straight Cylinder Shell Á¦¿ÜÇÑ ) Both-Head Plate Áß·® (Ton), Design Internal Pressure, Pi = 0.4 MPa, SG = 0.5 | |||||||||||||||||||||||||||
No. | Vnom (£í©ø) | Dia. (m) | (90%) DLL(m) | Pi+Ps=P (MPa) | SA516-60 t ¡Â 150t S=118 MPa | SA516-70 t ¡Â 150t S=138 MPa | SA537-CL1 t ¡Â 64t S=138 MPa | SA537-CL2 t ¡Â 64t S=158 MPa | SA240-304 SA240-316 S=138 MPa | SA240-304L SA240-316L S=115 MPa | A1106 (Hign Mn) S=220 MPa | A553-TYP1 (9% Ni) S=187 MPa | SA203-D (3.5% Ni) S=128 MPa | SA203-E (3.5% Ni) S=138 MPa | No. | Vnom (£í©ø) | Dia. (£í) | Head Plate Surface Area (£í©÷) | SA516-60 t ¡Â 150t S=118 MPa | SA516-70 t ¡Â 150t S=138 MPa | SA537-CL1 t ¡Â 64t S=138 MPa | SA537-CL2 t ¡Â 64t S=158 MPa | SA240-304 SA240-316 S=138 MPa | SA240-304L SA240-316L S=115 MPa | A1106 (Hign Mn) S=220 MPa | A553-TYP1 (9% Ni) S=187 MPa | SA203-D (3.5% Ni) S=128 MPa | SA203-E (3.5% Ni) S=138 MPa |
1 | 10 | 2.673 | 2.150 | 0.4 + 0.0105 | 2.33 | 1.99 | 1.99 | 1.74 | 1.99 | 2.39 | 1.25 | 1.47 | 2.14 | 1.99 | 1 | 10 | 2.673 | 22.447 | 0.41 | 0.35 | 0.35 | 0.31 | 0.35 | 0.42 | 0.22 | 0.26 | 0.38 | 0.35 |
2 | 20 | 3.368 | 2.708 | 0.4 + 0.0133 | 2.95 | 2.52 | 2.52 | 2.20 | 2.52 | 3.03 | 1.58 | 1.86 | 2.72 | 2.52 | 2 | 20 | 3.368 | 35.632 | 0.83 | 0.71 | 0.71 | 0.62 | 0.71 | 0.85 | 0.44 | 0.52 | 0.76 | 0.71 |
3 | 30 | 3.855 | 3.100 | 0.4 + 0.0152 | 3.39 | 2.90 | 2.90 | 2.53 | 2.90 | 3.48 | 1.82 | 2.14 | 3.13 | 2.90 | 3 | 30 | 3.855 | 46.691 | 1.24 | 1.06 | 1.06 | 0.93 | 1.06 | 1.28 | 0.67 | 0.78 | 1.15 | 1.06 |
4 | 40 | 4.243 | 3.412 | 0.4 + 0.0167 | 3.75 | 3.20 | 3.20 | 2.80 | 3.20 | 3.85 | 2.01 | 2.36 | 3.45 | 3.20 | 4 | 40 | 4.243 | 56.562 | 1.66 | 1.42 | 1.42 | 1.24 | 1.42 | 1.71 | 0.89 | 1.05 | 1.53 | 1.42 |
5 | 50 | 4.571 | 3.676 | 0.4 + 0.0180 | 4.05 | 3.46 | 3.46 | 3.02 | 3.46 | 4.16 | 2.17 | 2.55 | 3.73 | 3.46 | 5 | 50 | 4.571 | 65.634 | 2.09 | 1.78 | 1.78 | 1.56 | 1.78 | 2.14 | 1.12 | 1.32 | 1.92 | 1.78 |
6 | 60 | 4.857 | 3.906 | 0.4 + 0.0192 | 4.31 | 3.69 | 3.69 | 3.22 | 3.69 | 4.43 | 2.31 | 2.72 | 3.98 | 3.69 | 6 | 60 | 4.857 | 74.117 | 2.51 | 2.15 | 2.15 | 1.87 | 2.15 | 2.58 | 1.35 | 1.58 | 2.31 | 2.15 |
7 | 70 | 5.113 | 4.112 | 0.4 + 0.0202 | 4.55 | 3.89 | 3.89 | 3.40 | 3.89 | 4.67 | 2.44 | 2.87 | 4.20 | 3.89 | 7 | 70 | 5.113 | 82.139 | 2.94 | 2.51 | 2.51 | 2.19 | 2.51 | 3.01 | 1.57 | 1.85 | 2.71 | 2.51 |
8 | 80 | 5.346 | 4.299 | 0.4 + 0.0211 | 4.77 | 4.08 | 4.08 | 3.56 | 4.08 | 4.90 | 2.56 | 3.01 | 4.40 | 4.08 | 8 | 80 | 5.346 | 89.786 | 3.36 | 2.88 | 2.88 | 2.51 | 2.88 | 3.45 | 1.80 | 2.12 | 3.10 | 2.88 |
9 | 90 | 5.560 | 4.471 | 0.4 + 0.0219 | 4.97 | 4.25 | 4.25 | 3.71 | 4.25 | 5.10 | 2.67 | 3.14 | 4.58 | 4.25 | 9 | 90 | 5.560 | 97.121 | 3.79 | 3.24 | 3.24 | 2.83 | 3.24 | 3.89 | 2.03 | 2.39 | 3.49 | 3.24 |
10 | 100 | 5.759 | 4.631 | 0.4 + 0.0227 | 5.16 | 4.41 | 4.41 | 3.85 | 4.41 | 5.29 | 2.77 | 3.26 | 4.76 | 4.41 | 10 | 100 | 5.759 | 104.188 | 4.22 | 3.61 | 3.61 | 3.15 | 3.61 | 4.33 | 2.26 | 2.66 | 3.89 | 3.61 |
11 | 1100 | 12.808 | 10.300 | 0.4 + 0.0505 | 12.23 | 10.46 | 10.46 | 9.13 | 10.46 | 12.55 | 6.56 | 7.72 | 11.27 | 10.46 | 11 | 1100 | 12.808 | 515.323 | 49.47 | 42.30 | 42.30 | 36.94 | 42.30 | 50.76 | 26.53 | 31.21 | 45.60 | 42.30 |
12 | 1200 | 13.184 | 10.603 | 0.4 + 0.0520 | 12.63 | 10.80 | 10.80 | 9.43 | 10.80 | 12.96 | 6.77 | 7.97 | 11.64 | 10.80 | 12 | 1200 | 13.184 | 546.099 | 54.14 | 46.29 | 46.29 | 40.43 | 46.29 | 55.56 | 29.04 | 34.16 | 49.91 | 46.29 |
13 | 1300 | 13.541 | 10.890 | 0.4 + 0.0534 | 13.01 | 11.13 | 11.13 | 9.72 | 11.13 | 13.35 | 6.98 | 8.21 | 12.00 | 11.13 | 13 | 1300 | 13.541 | 576.032 | 58.84 | 50.31 | 50.31 | 43.94 | 50.31 | 60.37 | 31.55 | 37.12 | 54.24 | 50.31 |
14 | 1400 | 13.880 | 11.162 | 0.4 + 0.0547 | 13.38 | 11.44 | 11.44 | 9.99 | 11.44 | 13.73 | 7.17 | 8.44 | 12.33 | 11.44 | 14 | 1400 | 13.880 | 605.205 | 63.55 | 54.34 | 54.34 | 47.46 | 54.34 | 65.21 | 34.08 | 40.10 | 58.59 | 54.34 |
15 | 1500 | 14.202 | 11.422 | 0.4 + 0.0560 | 13.73 | 11.74 | 11.74 | 10.25 | 11.74 | 14.08 | 7.36 | 8.66 | 12.65 | 11.74 | 15 | 1500 | 14.202 | 633.692 | 68.28 | 58.38 | 58.38 | 50.99 | 58.38 | 70.06 | 36.62 | 43.08 | 62.95 | 58.38 |
16 | 1600 | 14.511 | 11.670 | 0.4 + 0.0572 | 14.06 | 12.02 | 12.02 | 10.50 | 12.02 | 14.43 | 7.54 | 8.87 | 12.96 | 12.02 | 16 | 1600 | 14.511 | 661.552 | 73.03 | 62.44 | 62.44 | 54.54 | 62.44 | 74.93 | 39.16 | 46.08 | 67.32 | 62.44 |
17 | 1700 | 14.808 | 11.908 | 0.4 + 0.0584 | 14.39 | 12.30 | 12.30 | 10.74 | 12.30 | 14.76 | 7.71 | 9.08 | 13.26 | 12.30 | 17 | 1700 | 14.808 | 688.837 | 77.79 | 66.51 | 66.51 | 58.09 | 66.51 | 79.82 | 41.72 | 49.08 | 71.71 | 66.51 |
18 | 1800 | 15.092 | 12.137 | 0.4 + 0.0595 | 14.70 | 12.57 | 12.57 | 10.98 | 12.57 | 15.08 | 7.88 | 9.27 | 13.55 | 12.57 | 18 | 1800 | 15.092 | 715.593 | 82.57 | 70.60 | 70.60 | 61.66 | 70.60 | 84.72 | 44.28 | 52.10 | 76.12 | 70.60 |
19 | 1900 | 15.367 | 12.358 | 0.4 + 0.0606 | 15.00 | 12.83 | 12.83 | 11.20 | 12.83 | 15.39 | 8.04 | 9.46 | 13.83 | 12.83 | 19 | 1900 | 15.367 | 741.856 | 87.36 | 74.70 | 74.70 | 65.24 | 74.70 | 89.64 | 46.85 | 55.12 | 80.53 | 74.70 |
20 | 2000 | 15.632 | 12.571 | 0.4 + 0.0616 | 15.29 | 13.08 | 13.08 | 11.42 | 13.08 | 15.69 | 8.20 | 9.65 | 14.10 | 13.08 | 20 | 2000 | 15.632 | 767.663 | 92.17 | 78.81 | 78.81 | 68.83 | 78.81 | 94.57 | 49.43 | 58.15 | 84.97 | 78.81 |
21 | 2100 | 15.888 | 12.777 | 0.4 + 0.0627 | 15.58 | 13.32 | 13.32 | 11.63 | 13.32 | 15.99 | 8.35 | 9.83 | 14.36 | 13.32 | 21 | 2100 | 15.888 | 793.043 | 96.99 | 82.93 | 82.93 | 72.43 | 82.93 | 99.52 | 52.01 | 61.19 | 89.41 | 82.93 |
22 | 2200 | 16.136 | 12.977 | 0.4 + 0.0636 | 15.86 | 13.56 | 13.56 | 11.84 | 13.56 | 16.27 | 8.50 | 10.00 | 14.62 | 13.56 | 22 | 2200 | 16.136 | 818.024 | 101.82 | 87.06 | 87.06 | 76.04 | 87.06 | 104.48 | 54.60 | 64.24 | 93.86 | 87.06 |
23 | 2300 | 16.377 | 13.171 | 0.4 + 0.0646 | 16.13 | 13.79 | 13.79 | 12.04 | 13.79 | 16.55 | 8.65 | 10.17 | 14.87 | 13.79 | 23 | 2300 | 16.377 | 842.628 | 106.67 | 91.20 | 91.20 | 79.66 | 91.20 | 109.45 | 57.20 | 67.30 | 98.33 | 91.20 |
24 | 2400 | 16.611 | 13.359 | 0.4 + 0.0655 | 16.39 | 14.01 | 14.01 | 12.24 | 14.01 | 16.82 | 8.79 | 10.34 | 15.11 | 14.01 | 24 | 2400 | 16.611 | 866.879 | 111.53 | 95.36 | 95.36 | 83.28 | 95.36 | 114.44 | 59.81 | 70.37 | 102.81 | 95.36 |
25 | 2500 | 16.839 | 13.542 | 0.4 + 0.0664 | 16.65 | 14.23 | 14.23 | 12.43 | 14.23 | 17.08 | 8.93 | 10.50 | 15.34 | 14.23 | 25 | 2500 | 16.839 | 890.794 | 116.40 | 99.52 | 99.52 | 86.92 | 99.52 | 119.44 | 62.42 | 73.44 | 107.30 | 99.52 |
26 | 2600 | 17.060 | 13.720 | 0.4 + 0.0673 | 16.90 | 14.45 | 14.45 | 12.62 | 14.45 | 17.34 | 9.06 | 10.66 | 15.58 | 14.45 | 26 | 2600 | 17.060 | 914.393 | 121.28 | 103.70 | 103.70 | 90.57 | 103.70 | 124.45 | 65.04 | 76.52 | 111.80 | 103.70 |
27 | 2700 | 17.276 | 13.894 | 0.4 + 0.0681 | 17.14 | 14.66 | 14.66 | 12.80 | 14.66 | 17.59 | 9.19 | 10.81 | 15.80 | 14.66 | 27 | 2700 | 17.276 | 937.691 | 126.18 | 107.88 | 107.88 | 94.22 | 107.88 | 129.47 | 67.66 | 79.61 | 116.32 | 107.88 |
28 | 2800 | 17.487 | 14.063 | 0.4 + 0.0690 | 17.38 | 14.86 | 14.86 | 12.98 | 14.86 | 17.83 | 9.32 | 10.97 | 16.02 | 14.86 | 28 | 2800 | 17.487 | 960.704 | 131.08 | 112.08 | 112.08 | 97.89 | 112.08 | 134.50 | 70.29 | 82.70 | 120.84 | 112.08 |
29 | 2900 | 17.693 | 14.229 | 0.4 + 0.0698 | 17.62 | 15.06 | 15.06 | 13.16 | 15.06 | 18.08 | 9.45 | 11.11 | 16.24 | 15.06 | 29 | 2900 | 17.693 | 983.444 | 136.00 | 116.28 | 116.28 | 101.56 | 116.28 | 139.55 | 72.93 | 85.80 | 125.37 | 116.28 |
30 | 3000 | 17.894 | 14.390 | 0.4 + 0.0706 | 17.85 | 15.26 | 15.26 | 13.33 | 15.26 | 18.31 | 9.57 | 11.26 | 16.45 | 15.26 | 30 | 3000 | 17.894 | 1005.924 | 140.93 | 120.49 | 120.49 | 105.24 | 120.49 | 144.60 | 75.57 | 88.91 | 129.91 | 120.49 |
31 | 3100 | 18.091 | 14.549 | 0.4 + 0.0713 | 18.07 | 15.45 | 15.45 | 13.50 | 15.45 | 18.54 | 9.69 | 11.40 | 16.66 | 15.45 | 31 | 3100 | 18.091 | 1028.155 | 145.86 | 124.72 | 124.72 | 108.92 | 124.72 | 149.67 | 78.22 | 92.03 | 134.46 | 124.72 |
32 | 3200 | 18.283 | 14.703 | 0.4 + 0.0721 | 18.29 | 15.64 | 15.64 | 13.66 | 15.64 | 18.77 | 9.81 | 11.54 | 16.86 | 15.64 | 32 | 3200 | 18.283 | 1050.149 | 150.81 | 128.95 | 128.95 | 112.62 | 128.95 | 154.75 | 80.87 | 95.15 | 139.02 | 128.95 |
33 | 3300 | 18.472 | 14.855 | 0.4 + 0.0728 | 18.51 | 15.83 | 15.83 | 13.82 | 15.83 | 18.99 | 9.93 | 11.68 | 17.07 | 15.83 | 33 | 3300 | 18.472 | 1071.914 | 155.77 | 133.19 | 133.19 | 116.32 | 133.19 | 159.83 | 83.53 | 98.28 | 143.59 | 133.19 |
34 | 3400 | 18.656 | 15.003 | 0.4 + 0.0736 | 18.73 | 16.01 | 16.01 | 13.98 | 16.01 | 19.21 | 10.04 | 11.81 | 17.26 | 16.01 | 34 | 3400 | 18.656 | 1093.461 | 160.74 | 137.43 | 137.43 | 120.03 | 137.43 | 164.93 | 86.20 | 101.41 | 148.17 | 137.43 |
35 | 3500 | 18.837 | 15.149 | 0.4 + 0.0743 | 18.94 | 16.19 | 16.19 | 14.14 | 16.19 | 19.43 | 10.15 | 11.95 | 17.46 | 16.19 | 35 | 3500 | 18.837 | 1114.798 | 165.71 | 141.69 | 141.69 | 123.75 | 141.69 | 170.04 | 88.87 | 104.55 | 152.76 | 141.69 |
36 | 3600 | 19.015 | 15.292 | 0.4 + 0.0750 | 19.14 | 16.37 | 16.37 | 14.30 | 16.37 | 19.64 | 10.27 | 12.08 | 17.65 | 16.37 | 36 | 3600 | 19.015 | 1135.932 | 170.70 | 145.95 | 145.95 | 127.47 | 145.95 | 175.15 | 91.54 | 107.70 | 157.36 | 145.95 |
37 | 3700 | 19.190 | 15.432 | 0.4 + 0.0757 | 19.35 | 16.54 | 16.54 | 14.45 | 16.54 | 19.85 | 10.37 | 12.21 | 17.83 | 16.54 | 37 | 3700 | 19.190 | 1156.872 | 175.70 | 150.22 | 150.22 | 131.20 | 150.22 | 180.28 | 94.22 | 110.85 | 161.96 | 150.22 |
38 | 3800 | 19.361 | 15.570 | 0.4 + 0.0763 | 19.55 | 16.71 | 16.71 | 14.60 | 16.71 | 20.06 | 10.48 | 12.33 | 18.02 | 16.71 | 38 | 3800 | 19.361 | 1177.624 | 180.70 | 154.50 | 154.50 | 134.94 | 154.50 | 185.42 | 96.90 | 114.01 | 166.58 | 154.50 |
39 | 3900 | 19.529 | 15.706 | 0.4 + 0.0770 | 19.74 | 16.88 | 16.88 | 14.74 | 16.88 | 20.26 | 10.59 | 12.46 | 18.20 | 16.88 | 39 | 3900 | 19.529 | 1198.194 | 185.71 | 158.79 | 158.79 | 138.68 | 158.79 | 190.56 | 99.59 | 117.17 | 171.20 | 158.79 |
40 | 4000 | 19.695 | 15.839 | 0.4 + 0.0777 | 19.94 | 17.05 | 17.05 | 14.89 | 17.05 | 20.46 | 10.69 | 12.58 | 18.38 | 17.05 | 40 | 4000 | 19.695 | 1218.590 | 190.74 | 163.08 | 163.08 | 142.43 | 163.08 | 195.72 | 102.29 | 120.34 | 175.83 | 163.08 |
41 | 4100 | 19.858 | 15.970 | 0.4 + 0.0783 | 20.13 | 17.21 | 17.21 | 15.03 | 17.21 | 20.66 | 10.80 | 12.70 | 18.56 | 17.21 | 41 | 4100 | 19.858 | 1238.816 | 195.77 | 167.39 | 167.39 | 146.19 | 167.39 | 200.88 | 104.98 | 123.51 | 180.47 | 167.39 |
42 | 4200 | 20.018 | 16.098 | 0.4 + 0.0789 | 20.32 | 17.37 | 17.37 | 15.17 | 17.37 | 20.85 | 10.90 | 12.82 | 18.73 | 17.37 | 42 | 4200 | 20.018 | 1258.878 | 200.81 | 171.70 | 171.70 | 149.96 | 171.70 | 206.05 | 107.69 | 126.69 | 185.11 | 171.70 |
43 | 4300 | 20.175 | 16.225 | 0.4 + 0.0796 | 20.51 | 17.53 | 17.53 | 15.31 | 17.53 | 21.04 | 11.00 | 12.94 | 18.90 | 17.53 | 43 | 4300 | 20.175 | 1278.782 | 205.86 | 176.01 | 176.01 | 153.72 | 176.01 | 211.23 | 110.39 | 129.88 | 189.77 | 176.01 |
44 | 4400 | 20.331 | 16.350 | 0.4 + 0.0802 | 20.69 | 17.69 | 17.69 | 15.45 | 17.69 | 21.23 | 11.10 | 13.05 | 19.07 | 17.69 | 44 | 4400 | 20.331 | 1298.532 | 210.91 | 180.33 | 180.33 | 157.50 | 180.33 | 216.42 | 113.10 | 133.07 | 194.43 | 180.33 |
45 | 4500 | 20.484 | 16.473 | 0.4 + 0.0808 | 20.87 | 17.85 | 17.85 | 15.59 | 17.85 | 21.42 | 11.19 | 13.17 | 19.24 | 17.85 | 45 | 4500 | 20.484 | 1318.133 | 215.98 | 184.67 | 184.67 | 161.28 | 184.67 | 221.61 | 115.82 | 136.26 | 199.10 | 184.67 |
46 | 4600 | 20.634 | 16.594 | 0.4 + 0.0814 | 21.05 | 18.00 | 18.00 | 15.72 | 18.00 | 21.60 | 11.29 | 13.28 | 19.41 | 18.00 | 46 | 4600 | 20.634 | 1337.589 | 221.05 | 189.00 | 189.00 | 165.07 | 189.00 | 226.82 | 118.54 | 139.46 | 203.77 | 189.00 |
47 | 4700 | 20.783 | 16.713 | 0.4 + 0.0820 | 21.23 | 18.15 | 18.15 | 15.85 | 18.15 | 21.78 | 11.38 | 13.39 | 19.57 | 18.15 | 47 | 4700 | 20.783 | 1356.905 | 226.13 | 193.35 | 193.35 | 168.86 | 193.35 | 232.03 | 121.26 | 142.67 | 208.46 | 193.35 |
48 | 4800 | 20.929 | 16.831 | 0.4 + 0.0825 | 21.40 | 18.30 | 18.30 | 15.98 | 18.30 | 21.96 | 11.48 | 13.50 | 19.73 | 18.30 | 48 | 4800 | 20.929 | 1376.084 | 231.22 | 197.70 | 197.70 | 172.66 | 197.70 | 237.25 | 123.99 | 145.88 | 213.15 | 197.70 |
49 | 4900 | 21.073 | 16.947 | 0.4 + 0.0831 | 21.58 | 18.45 | 18.45 | 16.11 | 18.45 | 22.14 | 11.57 | 13.61 | 19.89 | 18.45 | 49 | 4900 | 21.073 | 1395.131 | 236.31 | 202.05 | 202.05 | 176.47 | 202.05 | 242.48 | 126.73 | 149.09 | 217.84 | 202.05 |
50 | 5000 | 21.216 | 17.062 | 0.4 + 0.0837 | 21.75 | 18.60 | 18.60 | 16.24 | 18.60 | 22.32 | 11.66 | 13.72 | 20.05 | 18.60 | 50 | 5000 | 21.216 | 1414.048 | 241.42 | 206.42 | 206.42 | 180.28 | 206.42 | 247.72 | 129.46 | 152.31 | 222.55 | 206.42 |
51 | 6000 | 22.545 | 18.131 | 0.4 + 0.0889 | 23.36 | 19.97 | 19.97 | 17.45 | 19.97 | 23.97 | 12.53 | 14.74 | 21.54 | 19.97 | 51 | 6000 | 22.545 | 1596.804 | 292.84 | 250.38 | 250.38 | 218.68 | 250.38 | 300.48 | 157.04 | 184.76 | 269.95 | 250.38 |
52 | 7000 | 23.734 | 19.087 | 0.4 + 0.0936 | 24.83 | 21.23 | 21.23 | 18.54 | 21.23 | 25.48 | 13.32 | 15.67 | 22.89 | 21.23 | 52 | 7000 | 23.734 | 1769.631 | 344.92 | 294.92 | 294.92 | 257.57 | 294.92 | 353.93 | 184.97 | 217.62 | 317.97 | 294.92 |
53 | 8000 | 24.814 | 19.955 | 0.4 + 0.0978 | 26.18 | 22.39 | 22.39 | 19.55 | 22.39 | 26.87 | 14.04 | 16.52 | 24.14 | 22.39 | 53 | 8000 | 24.814 | 1934.390 | 397.60 | 339.96 | 339.96 | 296.91 | 339.96 | 407.98 | 213.22 | 250.85 | 366.53 | 339.96 |
54 | 9000 | 25.808 | 20.754 | 0.4 + 0.1018 | 27.45 | 23.47 | 23.47 | 20.50 | 23.47 | 28.16 | 14.72 | 17.32 | 25.30 | 23.47 | 54 | 9000 | 25.808 | 2092.405 | 450.82 | 385.46 | 385.46 | 336.66 | 385.46 | 462.59 | 241.76 | 284.43 | 415.59 | 385.46 |
55 | 10000 | 26.730 | 21.496 | 0.4 + 0.1054 | 28.63 | 24.48 | 24.48 | 21.38 | 24.48 | 29.38 | 15.36 | 18.07 | 26.40 | 24.48 | 55 | 10000 | 26.730 | 2244.661 | 504.55 | 431.40 | 431.40 | 376.77 | 431.40 | 517.72 | 270.57 | 318.33 | 465.12 | 431.40 |
56 | 11000 | 27.593 | 22.190 | 0.4 + 0.1088 | 29.76 | 25.44 | 25.44 | 22.22 | 25.44 | 30.53 | 15.96 | 18.77 | 27.43 | 25.44 | 56 | 11000 | 27.593 | 2391.916 | 558.74 | 477.73 | 477.73 | 417.24 | 477.73 | 573.32 | 299.63 | 352.52 | 515.07 | 477.73 |
57 | 12000 | 28.405 | 22.843 | 0.4 + 0.1120 | 30.83 | 26.36 | 26.36 | 23.02 | 26.36 | 31.63 | 16.53 | 19.45 | 28.42 | 26.36 | 57 | 12000 | 28.405 | 2534.768 | 613.37 | 524.45 | 524.45 | 458.04 | 524.45 | 629.38 | 328.93 | 386.99 | 565.43 | 524.45 |
58 | 13000 | 29.173 | 23.461 | 0.4 + 0.1150 | 31.85 | 27.23 | 27.23 | 23.78 | 27.23 | 32.68 | 17.08 | 20.09 | 29.36 | 27.23 | 58 | 13000 | 29.173 | 2673.702 | 668.42 | 571.51 | 571.51 | 499.15 | 571.51 | 685.87 | 358.44 | 421.72 | 616.18 | 571.51 |
59 | 14000 | 29.903 | 24.048 | 0.4 + 0.1179 | 32.83 | 28.07 | 28.07 | 24.51 | 28.07 | 33.68 | 17.60 | 20.71 | 30.26 | 28.07 | 59 | 14000 | 29.903 | 2809.115 | 723.86 | 618.91 | 618.91 | 540.54 | 618.91 | 742.75 | 388.17 | 456.69 | 667.29 | 618.91 |
60 | 15000 | 30.598 | 24.607 | 0.4 + 0.1207 | 33.77 | 28.87 | 28.87 | 25.22 | 28.87 | 34.65 | 18.11 | 21.30 | 31.13 | 28.87 | 60 | 15000 | 30.598 | 2941.338 | 779.67 | 666.64 | 666.64 | 582.22 | 666.64 | 800.02 | 418.10 | 491.91 | 718.74 | 666.64 |
61 | 16000 | 31.264 | 25.142 | 0.4 + 0.1233 | 34.68 | 29.65 | 29.65 | 25.89 | 29.65 | 35.58 | 18.59 | 21.88 | 31.97 | 29.65 | 61 | 16000 | 31.264 | 3070.653 | 835.85 | 714.66 | 714.66 | 624.17 | 714.66 | 857.66 | 448.23 | 527.35 | 770.52 | 714.66 |
62 | 17000 | 31.902 | 25.656 | 0.4 + 0.1258 | 35.55 | 30.40 | 30.40 | 26.55 | 30.40 | 36.48 | 19.07 | 22.43 | 32.78 | 30.40 | 62 | 17000 | 31.902 | 3197.300 | 892.36 | 762.98 | 762.98 | 666.37 | 762.98 | 915.65 | 478.53 | 563.00 | 822.62 | 762.98 |
63 | 18000 | 32.516 | 26.149 | 0.4 + 0.1282 | 36.40 | 31.13 | 31.13 | 27.19 | 31.13 | 37.35 | 19.52 | 22.97 | 33.56 | 31.13 | 63 | 18000 | 32.516 | 3321.486 | 949.20 | 811.58 | 811.58 | 708.82 | 811.58 | 973.97 | 509.01 | 598.86 | 875.01 | 811.58 |
64 | 19000 | 33.107 | 26.625 | 0.4 + 0.1305 | 37.23 | 31.83 | 31.83 | 27.80 | 31.83 | 38.20 | 19.96 | 23.49 | 34.32 | 31.83 | 64 | 19000 | 33.107 | 3443.392 | 1006.36 | 860.45 | 860.45 | 751.50 | 860.45 | 1032.62 | 539.66 | 634.92 | 927.71 | 860.45 |
65 | 20000 | 33.678 | 27.084 | 0.4 + 0.1328 | 38.03 | 32.52 | 32.52 | 28.40 | 32.52 | 39.03 | 20.40 | 24.00 | 35.06 | 32.52 | 65 | 20000 | 33.678 | 3563.177 | 1063.82 | 909.59 | 909.59 | 794.41 | 909.59 | 1091.59 | 570.48 | 671.18 | 980.68 | 909.59 |
66 | 21000 | 34.230 | 27.528 | 0.4 + 0.1350 | 38.81 | 33.19 | 33.19 | 28.98 | 33.19 | 39.83 | 20.81 | 24.49 | 35.78 | 33.19 | 66 | 21000 | 34.230 | 3680.982 | 1121.58 | 958.97 | 958.97 | 837.54 | 958.97 | 1150.85 | 601.45 | 707.62 | 1033.92 | 958.97 |
67 | 22000 | 34.765 | 27.958 | 0.4 + 0.1371 | 39.58 | 33.84 | 33.84 | 29.55 | 33.84 | 21.22 | 24.97 | 36.48 | 33.84 | 67 | 22000 | 34.765 | 3796.930 | 1179.62 | 1008.60 | 1008.60 | 880.88 | 1008.60 | 632.57 | 744.24 | 1087.43 | 1008.60 | ||
68 | 23000 | 35.284 | 28.375 | 0.4 + 0.1391 | 40.32 | 34.47 | 34.47 | 30.11 | 34.47 | 21.62 | 25.44 | 37.17 | 34.47 | 68 | 23000 | 35.284 | 3911.134 | 1237.95 | 1058.46 | 1058.46 | 924.43 | 1058.46 | 663.85 | 781.03 | 1141.19 | 1058.46 | ||
69 | 24000 | 35.788 | 28.781 | 0.4 + 0.1411 | 41.05 | 35.10 | 35.10 | 30.65 | 35.10 | 22.01 | 25.90 | 37.84 | 35.10 | 69 | 24000 | 35.788 | 4023.694 | 1296.53 | 1108.56 | 1108.56 | 968.19 | 1108.56 | 695.27 | 818.00 | 1195.20 | 1108.56 | ||
70 | 25000 | 36.278 | 29.175 | 0.4 + 0.1431 | 41.76 | 35.70 | 35.70 | 31.18 | 35.70 | 22.39 | 26.35 | 38.50 | 35.70 | 70 | 25000 | 36.278 | 4134.701 | 1355.38 | 1158.87 | 1158.87 | 1012.13 | 1158.87 | 726.82 | 855.12 | 1249.45 | 1158.87 | ||
71 | 26000 | 36.756 | 29.559 | 0.4 + 0.1449 | 42.46 | 36.30 | 36.30 | 31.70 | 36.30 | 22.77 | 26.79 | 39.14 | 36.30 | 71 | 26000 | 36.756 | 4244.238 | 1414.49 | 1209.41 | 1209.41 | 1056.27 | 1209.41 | 758.52 | 892.41 | 1303.93 | 1209.41 | ||
72 | 27000 | 37.221 | 29.933 | 0.4 + 0.1468 | 43.14 | 36.88 | 36.88 | 32.21 | 36.88 | 23.13 | 27.22 | 39.77 | 36.88 | 72 | 27000 | 37.221 | 4352.378 | 1473.84 | 1260.15 | 1260.15 | 1100.59 | 1260.15 | 790.34 | 929.86 | 1358.65 | 1260.15 | ||
73 | 28000 | 37.675 | 30.298 | 0.4 + 0.1486 | 43.81 | 37.46 | 37.46 | 32.71 | 37.46 | 23.49 | 27.64 | 40.38 | 37.46 | 73 | 28000 | 37.675 | 4459.192 | 1533.43 | 1311.11 | 1311.11 | 1145.09 | 1311.11 | 822.30 | 967.45 | 1413.58 | 1311.11 | ||
74 | 29000 | 38.118 | 30.655 | 0.4 + 0.1503 | 44.46 | 38.02 | 38.02 | 33.20 | 38.02 | 23.84 | 28.05 | 40.99 | 38.02 | 74 | 29000 | 38.118 | 4564.741 | 1593.26 | 1362.26 | 1362.26 | 1189.76 | 1362.26 | 854.38 | 1005.20 | 1468.73 | 1362.26 | ||
75 | 30000 | 38.551 | 31.003 | 0.4 + 0.1520 | 45.11 | 38.57 | 38.57 | 33.68 | 38.57 | 24.19 | 28.46 | 41.58 | 38.57 | 75 | 30000 | 38.551 | 4669.083 | 1653.32 | 1413.61 | 1413.61 | 1234.61 | 1413.61 | 886.59 | 1043.09 | 1524.10 | 1413.61 | ||
76 | 31000 | 38.975 | 31.344 | 0.4 + 0.1537 | 45.74 | 39.11 | 39.11 | 34.16 | 39.11 | 24.53 | 28.86 | 42.17 | 39.11 | 76 | 31000 | 38.975 | 4772.273 | 1713.60 | 1465.16 | 1465.16 | 1279.63 | 1465.16 | 918.91 | 1081.12 | 1579.67 | 1465.16 | ||
77 | 32000 | 39.390 | 31.677 | 0.4 + 0.1553 | 46.37 | 39.64 | 39.64 | 34.62 | 39.64 | 24.86 | 29.25 | 42.74 | 39.64 | 77 | 32000 | 39.390 | 4874.358 | 1774.11 | 1516.89 | 1516.89 | 1324.81 | 1516.89 | 951.36 | 1119.30 | 1635.44 | 1516.89 | ||
78 | 33000 | 39.796 | 32.004 | 0.4 + 0.1569 | 46.98 | 40.17 | 40.17 | 35.08 | 25.19 | 29.64 | 43.31 | 40.17 | 78 | 33000 | 39.796 | 4975.386 | 1834.83 | 1568.80 | 1568.80 | 1370.15 | 983.92 | 1157.60 | 1691.42 | 1568.80 | ||||
79 | 34000 | 40.194 | 32.324 | 0.4 + 0.1585 | 47.58 | 40.68 | 40.68 | 35.53 | 25.52 | 30.02 | 43.86 | 40.68 | 79 | 34000 | 40.194 | 5075.398 | 1895.76 | 1620.90 | 1620.90 | 1415.65 | 1016.59 | 1196.04 | 1747.59 | 1620.90 | ||||
80 | 35000 | 40.584 | 32.638 | 0.4 + 0.1600 | 48.18 | 41.19 | 41.19 | 35.98 | 25.83 | 30.39 | 44.41 | 41.19 | 80 | 35000 | 40.584 | 5174.434 | 1956.89 | 1673.17 | 1673.17 | 1461.30 | 1049.38 | 1234.61 | 1803.94 | 1673.17 | ||||
81 | 36000 | 40.967 | 32.946 | 0.4 + 0.1615 | 48.76 | 41.69 | 41.69 | 36.41 | 26.15 | 30.76 | 44.95 | 41.69 | 81 | 36000 | 40.967 | 5272.531 | 2018.23 | 1725.62 | 1725.62 | 1507.11 | 1082.27 | 1273.31 | 1860.49 | 1725.62 | ||||
82 | 37000 | 41.343 | 33.248 | 0.4 + 0.1630 | 49.34 | 42.19 | 42.19 | 36.84 | 26.46 | 31.13 | 45.48 | 42.19 | 82 | 37000 | 41.343 | 5369.724 | 2079.77 | 1778.23 | 1778.23 | 1553.06 | 1115.27 | 1312.14 | 1917.22 | 1778.23 | ||||
83 | 38000 | 41.712 | 33.545 | 0.4 + 0.1645 | 49.91 | 42.67 | 42.67 | 37.27 | 26.76 | 31.49 | 46.01 | 42.67 | 83 | 38000 | 41.712 | 5466.045 | 2141.51 | 1831.02 | 1831.02 | 1599.16 | 1148.37 | 1351.09 | 1974.13 | 1831.02 | ||||
84 | 39000 | 42.075 | 33.837 | 0.4 + 0.1659 | 50.47 | 43.15 | 43.15 | 37.69 | 27.06 | 31.84 | 46.53 | 43.15 | 84 | 39000 | 42.075 | 5561.525 | 2203.44 | 1883.97 | 1883.97 | 1645.40 | 1181.58 | 1390.16 | 2031.22 | 1883.97 | ||||
85 | 40000 | 42.431 | 34.123 | 0.4 + 0.1673 | 51.02 | 43.63 | 43.63 | 38.10 | 27.36 | 32.19 | 47.04 | 43.63 | 85 | 40000 | 42.431 | 5656.192 | 2265.55 | 1937.08 | 1937.08 | 1691.79 | 1214.89 | 1429.35 | 2088.48 | 1937.08 | ||||
86 | 41000 | 42.782 | 34.405 | 0.4 + 0.1687 | 51.57 | 44.09 | 44.09 | 38.51 | 27.66 | 32.54 | 47.54 | 44.09 | 86 | 41000 | 42.782 | 5750.073 | 2327.85 | 1990.34 | 1990.34 | 1738.31 | 1248.30 | 1468.65 | 2145.91 | 1990.34 | ||||
87 | 42000 | 43.127 | 34.683 | 0.4 + 0.1701 | 52.11 | 44.56 | 44.56 | 38.91 | 27.94 | 32.88 | 48.04 | 44.56 | 87 | 42000 | 43.127 | 5843.194 | 2390.34 | 2043.77 | 2043.77 | 1784.97 | 1281.80 | 1508.07 | 2203.51 | 2043.77 | ||||
88 | 43000 | 43.467 | 34.956 | 0.4 + 0.1714 | 52.65 | 45.01 | 45.01 | 39.31 | 28.23 | 33.21 | 48.53 | 45.01 | 88 | 43000 | 43.467 | 5935.579 | 2453.00 | 2097.35 | 2097.35 | 1831.77 | 1315.41 | 1547.61 | 2261.28 | 2097.35 | ||||
89 | 44000 | 43.801 | 35.225 | 0.4 + 0.1727 | 53.17 | 45.46 | 45.46 | 39.71 | 28.51 | 33.55 | 49.02 | 45.46 | 89 | 44000 | 43.801 | 6027.251 | 2515.84 | 2151.08 | 2151.08 | 1878.69 | 1349.10 | 1587.25 | 2319.21 | 2151.08 | ||||
90 | 45000 | 44.130 | 35.490 | 0.4 + 0.1740 | 53.69 | 45.91 | 45.91 | 40.10 | 28.79 | 33.88 | 49.50 | 45.91 | 90 | 45000 | 44.130 | 6118.230 | 2578.86 | 2204.96 | 2204.96 | 1925.75 | 1382.89 | 1627.01 | 2377.30 | 2204.96 | ||||
91 | 46000 | 44.455 | 35.751 | 0.4 + 0.1753 | 54.21 | 46.35 | 46.35 | 40.48 | 29.07 | 34.20 | 49.97 | 46.35 | 91 | 46000 | 44.455 | 6208.538 | 2642.05 | 2258.98 | 2258.98 | 1972.93 | 1416.78 | 1666.87 | 2435.54 | 2258.98 | ||||
92 | 47000 | 44.775 | 36.008 | 0.4 + 0.1766 | 54.72 | 46.79 | 46.79 | 40.86 | 29.34 | 34.52 | 50.44 | 46.79 | 92 | 47000 | 44.775 | 6298.194 | 2705.40 | 2313.15 | 2313.15 | 2020.24 | 1450.75 | 1706.85 | 2493.95 | 2313.15 | ||||
93 | 48000 | 45.090 | 36.261 | 0.4 + 0.1778 | 55.22 | 47.22 | 47.22 | 41.24 | 29.61 | 34.84 | 50.91 | 47.22 | 93 | 48000 | 45.090 | 6387.216 | 2768.93 | 2367.47 | 2367.47 | 2067.68 | 1484.81 | 1746.92 | 2552.51 | 2367.47 | ||||
94 | 49000 | 45.401 | 36.512 | 0.4 + 0.1790 | 55.72 | 47.64 | 47.64 | 41.61 | 29.88 | 35.16 | 51.37 | 47.64 | 94 | 49000 | 45.401 | 6475.622 | 2832.62 | 2421.92 | 2421.92 | 2115.23 | 1518.97 | 1787.10 | 2611.22 | 2421.92 | ||||
95 | 50000 | 45.708 | 36.758 | 0.4 + 0.1802 | 56.22 | 48.07 | 48.07 | 41.98 | 30.15 | 35.47 | 51.82 | 48.07 | 95 | 50000 | 45.708 | 6563.429 | 2896.47 | 2476.51 | 2476.51 | 2162.91 | 1553.20 | 1827.38 | 2670.08 | 2476.51 | ||||
96 | 51000 | 46.011 | 37.002 | 0.4 + 0.1814 | 56.71 | 48.48 | 48.48 | 42.34 | 30.41 | 35.78 | 52.27 | 48.48 | 96 | 51000 | 46.011 | 6650.652 | 2960.48 | 2531.24 | 2531.24 | 2210.71 | 1587.53 | 1867.77 | 2729.08 | 2531.24 | ||||
97 | 52000 | 46.309 | 37.242 | 0.4 + 0.1826 | 57.19 | 48.90 | 48.90 | 42.71 | 30.67 | 36.08 | 52.72 | 48.90 | 97 | 52000 | 46.309 | 6737.307 | 3024.64 | 2586.10 | 2586.10 | 2258.63 | 1621.94 | 1908.25 | 2788.24 | 2586.10 | ||||
98 | 53000 | 46.604 | 37.479 | 0.4 + 0.1838 | 57.67 | 49.31 | 49.31 | 43.06 | 30.92 | 36.38 | 53.16 | 49.31 | 98 | 53000 | 46.604 | 6823.408 | 3088.97 | 2641.10 | 2641.10 | 2306.66 | 1656.43 | 1948.83 | 2847.53 | 2641.10 | ||||
99 | 54000 | 46.896 | 37.713 | 0.4 + 0.1849 | 58.14 | 49.71 | 49.71 | 43.42 | 31.18 | 36.68 | 53.60 | 49.71 | 99 | 54000 | 46.896 | 6908.970 | 3153.45 | 2696.23 | 2696.23 | 2354.81 | 1691.00 | 1989.51 | 2906.97 | 2696.23 | ||||
100 | 55000 | 47.183 | 37.945 | 0.4 + 0.1861 | 58.61 | 50.12 | 50.12 | 43.77 | 31.43 | 36.98 | 54.03 | 50.12 | 100 | 55000 | 47.183 | 6994.005 | 3218.08 | 2751.49 | 2751.49 | 2403.07 | 1725.66 | 2030.28 | 2966.55 | 2751.49 |
±¸ºÐ | Hemi-Spherical Vessel | 2:1 Ellipsoidal Head Vessel | 10% Dish-Head Vessel | |||||||||||||||
R = 0.5¡¿D,¡¡¡¡Vnom = ¥ð¡¿[(D©ø/ 6) £« (D©÷¡¿ L / 4)] | R = 0.9045¡¿D,¡¡r = 0.172744¡¿D,¡¡z = 0.25¡¿D,¡¡Vnom = (¥ð¡¿D©ø/12) £« (L¡¿¥ð¡¿D©÷/4) | L = 1.0¡¿D,¡¡r = 0.1¡¿D,¡¡z=0.193774¡¿D,¡¡C=0.3780223,¡¡Vnom = (2¡¿C¡¿¥ð¡¿D©ø/12) £« (L¡¿¥ð¡¿D©÷/4) | ||||||||||||||||
¹øÈ£ | Dia (m) | TL TO TL Length (m) | Head End to End Length (m) | 1) HEAD Volume(m©ø) | 2) Cylinder Volume(m©ø) |
3) °øĪ¿ë·® Total Volume(m©ø) | Dia (m) | TL TO TL Length (m) | Head End to End Length (m) | 1) HEAD Volume(m©ø) | 2) Cylinder Volume(m©ø) |
3) °øĪ¿ë·® Total Volume(m©ø) | Dia (m) | TL TO TL Length (m) | Head End to End Length (m) | 1) HEAD Volume(m©ø) | 2) Cylinder Volume(m©ø) |
3) °øĪ¿ë·® Total Volume(m©ø) |
1 | 4.000 | 27.573 | 31.573 | 33.510 | 346.490 | 380.000 | 4.000 | 28.906 | 30.906 | 16.755 | 363.245 | 380.000 | 4.000 | 29.231 | 30.782 | 12.668 | 367.332 | 380.000 |
2 | 4.100 | 26.049 | 30.149 | 36.087 | 343.913 | 380.000 | 4.100 | 27.416 | 29.466 | 18.043 | 361.957 | 380.000 | 4.100 | 27.749 | 29.338 | 13.642 | 366.358 | 380.000 |
3 | 4.200 | 24.628 | 28.828 | 38.792 | 341.208 | 380.000 | 4.200 | 26.028 | 28.128 | 19.396 | 360.604 | 380.000 | 4.200 | 26.370 | 27.997 | 14.664 | 365.336 | 380.000 |
4 | 4.300 | 23.301 | 27.601 | 41.630 | 338.370 | 380.000 | 4.300 | 24.734 | 26.884 | 20.815 | 359.185 | 380.000 | 4.300 | 25.084 | 26.750 | 15.737 | 364.263 | 380.000 |
5 | 4.400 | 22.058 | 26.458 | 44.602 | 335.398 | 380.000 | 4.400 | 23.525 | 25.725 | 22.301 | 357.699 | 380.000 | 4.400 | 23.882 | 25.588 | 16.861 | 363.139 | 380.000 |
6 | 4.500 | 20.893 | 25.393 | 47.713 | 332.287 | 380.000 | 4.500 | 22.393 | 24.643 | 23.856 | 356.144 | 380.000 | 4.500 | 22.759 | 24.503 | 18.037 | 361.963 | 380.000 |
7 | 4.600 | 19.799 | 24.399 | 50.965 | 329.035 | 380.000 | 4.600 | 21.332 | 23.632 | 25.483 | 354.517 | 380.000 | 4.600 | 21.706 | 23.489 | 19.266 | 360.734 | 380.000 |
8 | 4.700 | 18.769 | 23.469 | 54.362 | 325.638 | 380.000 | 4.700 | 20.336 | 22.686 | 27.181 | 352.819 | 380.000 | 4.700 | 20.718 | 22.540 | 20.550 | 359.450 | 380.000 |
9 | 4.800 | 17.800 | 22.600 | 57.906 | 322.094 | 380.000 | 4.800 | 19.400 | 21.800 | 28.953 | 351.047 | 380.000 | 4.800 | 19.790 | 21.650 | 21.890 | 358.110 | 380.000 |
10 | 4.900 | 16.885 | 21.785 | 61.601 | 318.399 | 380.000 | 4.900 | 18.518 | 20.968 | 30.800 | 349.200 | 380.000 | 4.900 | 18.916 | 20.815 | 23.287 | 356.713 | 380.000 |
11 | 5.000 | 16.020 | 21.020 | 65.450 | 314.550 | 380.000 | 5.000 | 17.687 | 20.187 | 32.725 | 347.275 | 380.000 | 5.000 | 18.093 | 20.031 | 24.742 | 355.258 | 380.000 |
12 | 5.100 | 15.202 | 20.302 | 69.456 | 310.544 | 380.000 | 5.100 | 16.902 | 19.452 | 34.728 | 345.272 | 380.000 | 5.100 | 17.316 | 19.293 | 26.256 | 353.744 | 380.000 |
13 | 5.200 | 14.426 | 19.626 | 73.622 | 306.378 | 380.000 | 5.200 | 16.160 | 18.760 | 36.811 | 343.189 | 380.000 | 5.200 | 16.583 | 18.598 | 27.831 | 352.169 | 380.000 |
14 | 5.300 | 13.691 | 18.991 | 77.952 | 302.048 | 380.000 | 5.300 | 15.458 | 18.108 | 38.976 | 341.024 | 380.000 | 5.300 | 15.889 | 17.943 | 29.468 | 350.532 | 380.000 |
15 | 5.400 | 12.992 | 18.392 | 82.448 | 297.552 | 380.000 | 5.400 | 14.792 | 17.492 | 41.224 | 338.776 | 380.000 | 5.400 | 15.231 | 17.324 | 31.167 | 348.833 | 380.000 |
16 | 5.500 | 12.328 | 17.828 | 87.114 | 292.886 | 380.000 | 5.500 | 14.161 | 16.911 | 43.557 | 336.443 | 380.000 | 5.500 | 14.608 | 16.740 | 32.931 | 347.069 | 380.000 |
17 | 5.600 | 11.695 | 17.295 | 91.952 | 288.048 | 380.000 | 5.600 | 13.562 | 16.362 | 45.976 | 334.024 | 380.000 | 5.600 | 14.017 | 16.187 | 34.760 | 345.240 | 380.000 |
18 | 5.700 | 11.092 | 16.792 | 96.967 | 283.033 | 380.000 | 5.700 | 12.992 | 15.842 | 48.483 | 331.517 | 380.000 | 5.700 | 13.455 | 15.664 | 36.656 | 343.344 | 380.000 |
19 | 5.800 | 10.516 | 16.316 | 102.160 | 277.840 | 380.000 | 5.800 | 12.449 | 15.349 | 51.080 | 328.920 | 380.000 | 5.800 | 12.921 | 15.169 | 38.619 | 341.381 | 380.000 |
20 | 5.900 | 9.966 | 15.866 | 107.536 | 272.464 | 380.000 | 5.900 | 11.933 | 14.883 | 53.768 | 326.232 | 380.000 | 5.900 | 12.412 | 14.699 | 40.651 | 339.349 | 380.000 |
21 | 6.000 | 9.440 | 15.440 | 113.097 | 266.903 | 380.000 | 6.000 | 11.440 | 14.440 | 56.549 | 323.451 | 380.000 | 6.000 | 11.928 | 14.253 | 42.753 | 337.247 | 380.000 |
22 | 6.100 | 8.936 | 15.036 | 118.847 | 261.153 | 380.000 | 6.100 | 10.969 | 14.019 | 59.423 | 320.577 | 380.000 | 6.100 | 11.465 | 13.829 | 44.927 | 335.073 | 380.000 |
23 | 6.200 | 8.453 | 14.653 | 124.788 | 255.212 | 380.000 | 6.200 | 10.520 | 13.620 | 62.394 | 317.606 | 380.000 | 6.200 | 11.024 | 13.427 | 47.173 | 332.827 | 380.000 |
24 | 6.300 | 7.990 | 14.290 | 130.924 | 249.076 | 380.000 | 6.300 | 10.090 | 13.240 | 65.462 | 314.538 | 380.000 | 6.300 | 10.603 | 13.044 | 49.492 | 330.508 | 380.000 |
25 | 6.400 | 7.546 | 13.946 | 137.258 | 242.742 | 380.000 | 6.400 | 9.679 | 12.879 | 68.629 | 311.371 | 380.000 | 6.400 | 10.199 | 12.680 | 51.887 | 328.113 | 380.000 |
26 | 6.500 | 7.118 | 13.618 | 143.793 | 236.207 | 380.000 | 6.500 | 9.285 | 12.535 | 71.897 | 308.103 | 380.000 | 6.500 | 9.814 | 12.333 | 54.357 | 325.643 | 380.000 |
27 | 6.600 | 6.707 | 13.307 | 150.533 | 229.467 | 380.000 | 6.600 | 8.907 | 12.207 | 75.266 | 304.734 | 380.000 | 6.600 | 9.444 | 12.002 | 56.905 | 323.095 | 380.000 |
28 | 6.700 | 6.311 | 13.011 | 157.479 | 222.521 | 380.000 | 6.700 | 8.545 | 11.895 | 78.740 | 301.260 | 380.000 | 6.700 | 9.090 | 11.686 | 59.531 | 320.469 | 380.000 |
29 | 6.800 | 5.930 | 12.730 | 164.636 | 215.364 | 380.000 | 6.800 | 8.197 | 11.597 | 82.318 | 297.682 | 380.000 | 6.800 | 8.750 | 11.385 | 62.236 | 317.764 | 380.000 |
30 | 6.900 | 5.562 | 12.462 | 172.007 | 207.993 | 380.000 | 6.900 | 7.862 | 11.312 | 86.003 | 293.997 | 380.000 | 6.900 | 8.423 | 11.098 | 65.022 | 314.978 | 380.000 |
31 | 7.000 | 5.207 | 12.207 | 179.594 | 200.406 | 380.000 | 7.000 | 7.541 | 11.041 | 89.797 | 290.203 | 380.000 | 7.000 | 8.110 | 10.823 | 67.891 | 312.109 | 380.000 |
32 | 7.100 | 4.865 | 11.965 | 187.402 | 192.598 | 380.000 | 7.100 | 7.231 | 10.781 | 93.701 | 286.299 | 380.000 | 7.100 | 7.809 | 10.560 | 70.842 | 309.158 | 380.000 |
33 | 7.200 | 4.533 | 11.733 | 195.432 | 184.568 | 380.000 | 7.200 | 6.933 | 10.533 | 97.716 | 282.284 | 380.000 | 7.200 | 7.519 | 10.309 | 73.878 | 306.122 | 380.000 |
34 | 7.300 | 4.213 | 11.513 | 203.689 | 176.311 | 380.000 | 7.300 | 6.646 | 10.296 | 101.844 | 278.156 | 380.000 | 7.300 | 7.240 | 10.069 | 76.999 | 303.001 | 380.000 |
35 | 7.400 | 3.902 | 11.302 | 212.175 | 167.825 | 380.000 | 7.400 | 6.369 | 10.069 | 106.087 | 273.913 | 380.000 | 7.400 | 6.971 | 9.838 | 80.207 | 299.793 | 380.000 |
36 | 7.500 | 3.601 | 11.101 | 220.893 | 159.107 | 380.000 | 7.500 | 6.101 | 9.851 | 110.447 | 269.553 | 380.000 | 7.500 | 6.711 | 9.618 | 83.503 | 296.497 | 380.000 |
37 | 7.600 | 3.310 | 10.910 | 229.847 | 150.153 | 380.000 | 7.600 | 5.843 | 9.643 | 114.924 | 265.076 | 380.000 | 7.600 | 6.461 | 9.407 | 86.887 | 293.113 | 380.000 |
38 | 7.700 | 3.027 | 10.727 | 239.040 | 140.960 | 380.000 | 7.700 | 5.594 | 9.444 | 119.520 | 260.480 | 380.000 | 7.700 | 6.220 | 9.204 | 90.362 | 289.638 | 380.000 |
39 | 7.800 | 2.753 | 10.553 | 248.475 | 131.525 | 380.000 | 7.800 | 5.353 | 9.253 | 124.237 | 255.763 | 380.000 | 7.800 | 5.987 | 9.010 | 93.929 | 286.071 | 380.000 |
40 | 7.900 | 2.486 | 10.386 | 258.155 | 121.845 | 380.000 | 7.900 | 5.119 | 9.069 | 129.077 | 250.923 | 380.000 | 7.900 | 5.762 | 8.823 | 97.588 | 282.412 | 380.000 |
41 | 8.000 | 2.227 | 10.227 | 268.083 | 111.917 | 380.000 | 8.000 | 4.893 | 8.893 | 134.041 | 245.959 | 380.000 | 8.000 | 5.544 | 8.644 | 101.341 | 278.659 | 380.000 |
42 | 8.100 | 1.974 | 10.074 | 278.262 | 101.738 | 380.000 | 8.100 | 4.674 | 8.724 | 139.131 | 240.869 | 380.000 | 8.100 | 5.333 | 8.472 | 105.189 | 274.811 | 380.000 |
43 | 8.200 | 1.729 | 9.929 | 288.696 | 91.304 | 380.000 | 8.200 | 4.462 | 8.562 | 144.348 | 235.652 | 380.000 | 8.200 | 5.129 | 8.307 | 109.133 | 270.867 | 380.000 |
44 | 8.300 | 1.490 | 9.790 | 299.387 | 80.613 | 380.000 | 8.300 | 4.257 | 8.407 | 149.693 | 230.307 | 380.000 | 8.300 | 4.932 | 8.148 | 113.175 | 266.825 | 380.000 |
45 | 8.400 | 1.257 | 9.657 | 310.339 | 69.661 | 380.000 | 8.400 | 4.057 | 8.257 | 155.170 | 224.830 | 380.000 | 8.400 | 4.740 | 7.995 | 117.315 | 262.685 | 380.000 |
46 | 8.500 | 1.030 | 9.530 | 321.555 | 58.445 | 380.000 | 8.500 | 3.863 | 8.113 | 160.778 | 219.222 | 380.000 | 8.500 | 4.554 | 7.849 | 121.555 | 258.445 | 380.000 |
47 | 8.600 | 0.808 | 9.408 | 333.038 | 46.962 | 380.000 | 8.600 | 3.675 | 7.975 | 166.519 | 213.481 | 380.000 | 8.600 | 4.374 | 7.707 | 125.896 | 254.104 | 380.000 |
48 | 8.700 | 0.592 | 9.292 | 344.791 | 35.209 | 380.000 | 8.700 | 3.492 | 7.842 | 172.396 | 207.604 | 380.000 | 8.700 | 4.200 | 7.571 | 130.339 | 249.661 | 380.000 |
49 | 8.800 | 0.381 | 9.181 | 356.818 | 23.182 | 380.000 | 8.800 | 3.314 | 7.714 | 178.409 | 201.591 | 380.000 | 8.800 | 4.030 | 7.441 | 134.885 | 245.115 | 380.000 |
50 | 8.900 | 0.175 | 9.075 | 369.121 | 10.879 | 380.000 | 8.900 | 3.142 | 7.592 | 184.560 | 195.440 | 380.000 | 8.900 | 3.865 | 7.314 | 139.536 | 240.464 | 380.000 |
51 | 9.000 | -0.027 | 8.973 | 381.704 | -1.704 | 380.000 | 9.000 | 2.973 | 7.473 | 190.852 | 189.148 | 380.000 | 9.000 | 3.705 | 7.193 | 144.292 | 235.708 | 380.000 |
52 | 9.100 | -0.224 | 8.876 | 394.569 | -14.569 | 380.000 | 9.100 | 2.809 | 7.359 | 197.284 | 182.716 | 380.000 | 9.100 | 3.549 | 7.076 | 149.156 | 230.844 | 380.000 |
53 | 9.200 | -0.417 | 8.783 | 407.720 | -27.720 | 380.000 | 9.200 | 2.650 | 7.250 | 203.860 | 176.140 | 380.000 | 9.200 | 3.398 | 6.963 | 154.127 | 225.873 | 380.000 |
54 | 9.300 | -0.606 | 8.694 | 421.160 | -41.160 | 380.000 | 9.300 | 2.494 | 7.144 | 210.580 | 169.420 | 380.000 | 9.300 | 3.250 | 6.855 | 159.208 | 220.792 | 380.000 |
55 | 9.400 | -0.791 | 8.609 | 434.893 | -54.893 | 380.000 | 9.400 | 2.342 | 7.042 | 217.446 | 162.554 | 380.000 | 9.400 | 3.107 | 6.750 | 164.399 | 215.601 | 380.000 |
56 | 9.500 | -0.972 | 8.528 | 448.921 | -68.921 | 380.000 | 9.500 | 2.194 | 6.944 | 224.460 | 155.540 | 380.000 | 9.500 | 2.967 | 6.649 | 169.702 | 210.298 | 380.000 |
57 | 9.600 | -1.150 | 8.450 | 463.247 | -83.247 | 380.000 | 9.600 | 2.050 | 6.850 | 231.623 | 148.377 | 380.000 | 9.600 | 2.831 | 6.551 | 175.118 | 204.882 | 380.000 |
58 | 9.700 | -1.324 | 8.376 | 477.874 | -97.874 | 380.000 | 9.700 | 1.909 | 6.759 | 238.937 | 141.063 | 380.000 | 9.700 | 2.698 | 6.457 | 180.647 | 199.353 | 380.000 |
59 | 9.800 | -1.496 | 8.304 | 492.807 | -112.807 | 380.000 | 9.800 | 1.771 | 6.671 | 246.403 | 133.597 | 380.000 | 9.800 | 2.568 | 6.366 | 186.292 | 193.708 | 380.000 |
60 | 9.900 | -1.663 | 8.237 | 508.047 | -128.047 | 380.000 | 9.900 | 1.637 | 6.587 | 254.024 | 125.976 | 380.000 | 9.900 | 2.442 | 6.278 | 192.053 | 187.947 | 380.000 |
61 | 10.000 | -1.828 | 8.172 | 523.599 | -143.599 | 380.000 | 10.000 | 1.505 | 6.505 | 261.799 | 118.201 | 380.000 | 10.000 | 2.318 | 6.194 | 197.932 | 182.068 | 380.000 |
62 | 10.100 | -1.990 | 8.110 | 539.464 | -159.464 | 380.000 | 10.100 | 1.376 | 6.426 | 269.732 | 110.268 | 380.000 | 10.100 | 2.198 | 6.112 | 203.930 | 176.070 | 380.000 |
63 | 10.200 | -2.150 | 8.050 | 555.647 | -175.647 | 380.000 | 10.200 | 1.250 | 6.350 | 277.824 | 102.176 | 380.000 | 10.200 | 2.080 | 6.033 | 210.047 | 169.953 | 380.000 |
64 | 10.300 | -2.306 | 7.994 | 572.151 | -192.151 | 380.000 | 10.300 | 1.127 | 6.277 | 286.075 | 93.925 | 380.000 | 10.300 | 1.965 | 5.957 | 216.286 | 163.714 | 380.000 |
65 | 10.400 | -2.460 | 7.940 | 588.977 | -208.977 | 380.000 | 10.400 | 1.007 | 6.207 | 294.489 | 85.511 | 380.000 | 10.400 | 1.852 | 5.883 | 222.647 | 157.353 | 380.000 |
66 | 10.500 | -2.612 | 7.888 | 606.131 | -226.131 | 380.000 | 10.500 | 0.888 | 6.138 | 303.066 | 76.934 | 380.000 | 10.500 | 1.742 | 5.812 | 229.131 | 150.869 | 380.000 |
67 | 10.600 | -2.761 | 7.839 | 623.615 | -243.615 | 380.000 | 10.600 | 0.773 | 6.073 | 311.807 | 68.193 | 380.000 | 10.600 | 1.635 | 5.743 | 235.740 | 144.260 | 380.000 |
68 | 10.700 | -2.907 | 7.793 | 641.431 | -261.431 | 380.000 | 10.700 | 0.659 | 6.009 | 320.716 | 59.284 | 380.000 | 10.700 | 1.529 | 5.676 | 242.475 | 137.525 | 380.000 |
69 | 10.800 | -3.052 | 7.748 | 659.584 | -279.584 | 380.000 | 10.800 | 0.548 | 5.948 | 329.792 | 50.208 | 380.000 | 10.800 | 1.426 | 5.612 | 249.337 | 130.663 | 380.000 |
70 | 10.900 | -3.194 | 7.706 | 678.076 | -298.076 | 380.000 | 10.900 | 0.439 | 5.889 | 339.038 | 40.962 | 380.000 | 10.900 | 1.325 | 5.550 | 256.328 | 123.672 | 380.000 |
71 | 11.000 | -3.335 | 7.665 | 696.910 | -316.910 | 380.000 | 11.000 | 0.332 | 5.832 | 348.455 | 31.545 | 380.000 | 11.000 | 1.226 | 5.489 | 263.448 | 116.552 | 380.000 |
72 | 11.100 | -3.473 | 7.627 | 716.090 | -336.090 | 380.000 | 11.100 | 0.227 | 5.777 | 358.045 | 21.955 | 380.000 | 11.100 | 1.130 | 5.431 | 270.698 | 109.302 | 380.000 |
73 | 11.200 | -3.610 | 7.590 | 735.619 | -355.619 | 380.000 | 11.200 | 0.124 | 5.724 | 367.809 | 12.191 | 380.000 | 11.200 | 1.035 | 5.375 | 278.080 | 101.920 | 380.000 |
74 | 11.300 | -3.744 | 7.556 | 755.499 | -375.499 | 380.000 | 11.300 | 0.022 | 5.672 | 377.750 | 2.250 | 380.000 | 11.300 | 0.941 | 5.321 | 285.596 | 94.404 | 380.000 |
75 | 11.400 | -3.877 | 7.523 | 775.735 | -395.735 | 380.000 | 11.400 | -0.077 | 5.623 | 387.867 | -7.867 | 380.000 | 11.400 | 0.850 | 5.268 | 293.245 | 86.755 | 380.000 |
76 | 11.500 | -4.008 | 7.492 | 796.328 | -416.328 | 380.000 | 11.500 | -0.175 | 5.575 | 398.164 | -18.164 | 380.000 | 11.500 | 0.760 | 5.217 | 301.030 | 78.970 | 380.000 |
77 | 11.600 | -4.138 | 7.462 | 817.283 | -437.283 | 380.000 | 11.600 | -0.271 | 5.529 | 408.642 | -28.642 | 380.000 | 11.600 | 0.672 | 5.168 | 308.951 | 71.049 | 380.000 |
78 | 11.700 | -4.266 | 7.434 | 838.603 | -458.603 | 380.000 | 11.700 | -0.366 | 5.484 | 419.301 | -39.301 | 380.000 | 11.700 | 0.586 | 5.120 | 317.010 | 62.990 | 380.000 |
79 | 11.800 | -4.392 | 7.408 | 860.290 | -480.290 | 380.000 | 11.800 | -0.459 | 5.441 | 430.145 | -50.145 | 380.000 | 11.800 | 0.501 | 5.074 | 325.209 | 54.791 | 380.000 |
80 | 11.900 | -4.517 | 7.383 | 882.347 | -502.347 | 380.000 | 11.900 | -0.550 | 5.400 | 441.174 | -61.174 | 380.000 | 11.900 | 0.418 | 5.029 | 333.547 | 46.453 | 380.000 |
81 | 12.000 | -4.640 | 7.360 | 904.779 | -524.779 | 380.000 | 12.000 | -0.640 | 5.360 | 452.389 | -72.389 | 380.000 | 12.000 | 0.336 | 4.986 | 342.027 | 37.973 | 380.000 |
82 | 12.100 | -4.762 | 7.338 | 927.587 | -547.587 | 380.000 | 12.100 | -0.729 | 5.321 | 463.794 | -83.794 | 380.000 | 12.100 | 0.255 | 4.945 | 350.649 | 29.351 | 380.000 |
83 | 12.200 | -4.883 | 7.317 | 950.776 | -570.776 | 380.000 | 12.200 | -0.816 | 5.284 | 475.388 | -95.388 | 380.000 | 12.200 | 0.176 | 4.904 | 359.414 | 20.586 | 380.000 |
84 | 12.300 | -5.002 | 7.298 | 974.348 | -594.348 | 380.000 | 12.300 | -0.902 | 5.248 | 487.174 | -107.174 | 380.000 | 12.300 | 0.098 | 4.865 | 368.325 | 11.675 | 380.000 |
85 | 12.400 | -5.120 | 7.280 | 998.306 | -618.306 | 380.000 | 12.400 | -0.987 | 5.213 | 499.153 | -119.153 | 380.000 | 12.400 | 0.022 | 4.827 | 377.382 | 2.618 | 380.000 |
86 | 12.500 | -5.237 | 7.263 | 1022.654 | -642.654 | 380.000 | 12.500 | -1.070 | 5.180 | 511.327 | -131.327 | 380.000 | 12.500 | -0.054 | 4.791 | 386.586 | -6.586 | 380.000 |
87 | 12.600 | -5.352 | 7.248 | 1047.394 | -667.394 | 380.000 | 12.600 | -1.152 | 5.148 | 523.697 | -143.697 | 380.000 | 12.600 | -0.128 | 4.755 | 395.938 | -15.938 | 380.000 |
88 | 12.700 | -5.467 | 7.233 | 1072.531 | -692.531 | 380.000 | 12.700 | -1.234 | 5.116 | 536.265 | -156.265 | 380.000 | 12.700 | -0.201 | 4.721 | 405.441 | -25.441 | 380.000 |
89 | 12.800 | -5.580 | 7.220 | 1098.066 | -718.066 | 380.000 | 12.800 | -1.314 | 5.086 | 549.033 | -169.033 | 380.000 | 12.800 | -0.273 | 4.688 | 415.094 | -35.094 | 380.000 |
90 | 12.900 | -5.693 | 7.207 | 1124.004 | -744.004 | 380.000 | 12.900 | -1.393 | 5.057 | 562.002 | -182.002 | 380.000 | 12.900 | -0.344 | 4.656 | 424.898 | -44.898 | 380.000 |
91 | 13.000 | -5.804 | 7.196 | 1150.347 | -770.347 | 380.000 | 13.000 | -1.470 | 5.030 | 575.173 | -195.173 | 380.000 | 13.000 | -0.413 | 4.625 | 434.857 | -54.857 | 380.000 |
92 | 13.100 | -5.914 | 7.186 | 1177.098 | -797.098 | 380.000 | 13.100 | -1.547 | 5.003 | 588.549 | -208.549 | 380.000 | 13.100 | -0.482 | 4.595 | 444.969 | -64.969 | 380.000 |
93 | 13.200 | -6.023 | 7.177 | 1204.260 | -824.260 | 380.000 | 13.200 | -1.623 | 4.977 | 602.130 | -222.130 | 380.000 | 13.200 | -0.550 | 4.566 | 455.237 | -75.237 | 380.000 |
94 | 13.300 | -6.131 | 7.169 | 1231.838 | -851.838 | 380.000 | 13.300 | -1.698 | 4.952 | 615.919 | -235.919 | 380.000 | 13.300 | -0.617 | 4.538 | 465.662 | -85.662 | 380.000 |
95 | 13.400 | -6.239 | 7.161 | 1259.833 | -879.833 | 380.000 | 13.400 | -1.772 | 4.928 | 629.917 | -249.917 | 380.000 | 13.400 | -0.682 | 4.511 | 476.245 | -96.245 | 380.000 |
96 | 13.500 | -6.345 | 7.155 | 1288.249 | -908.249 | 380.000 | 13.500 | -1.845 | 4.905 | 644.125 | -264.125 | 380.000 | 13.500 | -0.747 | 4.484 | 486.987 | -106.987 | 380.000 |
97 | 13.600 | -6.451 | 7.149 | 1317.090 | -937.090 | 380.000 | 13.600 | -1.917 | 4.883 | 658.545 | -278.545 | 380.000 | 13.600 | -0.812 | 4.459 | 497.889 | -117.889 | 380.000 |
98 | 13.700 | -6.556 | 7.144 | 1346.357 | -966.357 | 380.000 | 13.700 | -1.989 | 4.861 | 673.179 | -293.179 | 380.000 | 13.700 | -0.875 | 4.435 | 508.953 | -128.953 | 380.000 |
99 | 13.800 | -6.659 | 7.141 | 1376.055 | -996.055 | 380.000 | 13.800 | -2.059 | 4.841 | 688.028 | -308.028 | 380.000 | 13.800 | -0.937 | 4.411 | 520.180 | -140.180 | 380.000 |
100 | 13.900 | -6.762 | 7.138 | 1406.187 | -1026.187 | 380.000 | 13.900 | -2.129 | 4.821 | 703.093 | -323.093 | 380.000 | 13.900 | -0.999 | 4.388 | 531.570 | -151.570 | 380.000 |
101 | 14.000 | -6.865 | 7.135 | 1436.755 | -1056.755 | 380.000 | 14.000 | -2.198 | 4.802 | 718.378 | -338.378 | 380.000 | 14.000 | -1.060 | 4.366 | 543.125 | -163.125 | 380.000 |
1. Cylindrical Shell Plate | at Operation T (mm) | at Test T (mm) | c1 (mm) | c2 (mm) | Tu (mm) | SKETCH ASME SEC.VIII Div.1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
¡¡ | KR (Çѱ¹¼±±Þ) |
| 4.755 | 3.34 | 0.900 | 1.345 | 7.00 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LR (¿µ±¹¼±±Þ) |
| 4.504 | 3.33 | 0.900 | 1.596 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DNV-GL(³ë¸£¿þÀÌ) |
| 4.497 | 3.34 | 0.900 | 1.603 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Class-Nk(ÀϺ»¼±±Þ) |
| 4.504 | 3.34 | 0.900 | 1.596 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BV (ÇÁ¶û½º) |
| 4.504 | 3.34 | 0.900 | 1.596 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ABS (¹Ì±¹¼±±Þ) |
| 4.504 | 3.34 | 0.900 | 1.596 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ASME (¾Ð·Â¿ë±â) |
| 4.505 | 3.34 | 0.900 | 1.595 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
2. [HH] Hemi-Spherical Head | at Operation T (mm) | at Test T (mm) | c1 (mm) | c2 (mm) | Tu (mm) | SKETCH ASME SEC.VIII Div.1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
¡¡ | KR (Çѱ¹¼±±Þ) |
| 2.876 | 1.67 | 0.900 | 3.224 | 7.00 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LR (¿µ±¹¼±±Þ) |
| 2.626 | 1.67 | 0.900 | 3.474 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DNV-GL(³ë¸£¿þÀÌ) |
| 2.624 | 1.67 | 0.900 | 3.476 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Class-Nk(ÀϺ»¼±±Þ) |
| 2.626 | 1.67 | 0.900 | 3.474 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BV (ÇÁ¶û½º) |
| 2.627 | 1.67 | 0.900 | 3.473 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ABS (¹Ì±¹¼±±Þ) |
| 2.626 | 1.67 | 0.900 | 3.474 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ASME (¾Ð·Â¿ë±â) |
| 2.626 | 1.67 | 0.900 | 3.474 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3. [EE] 2:1 Ellipsoidal Head | at Operation T (mm) | at Test T (mm) | c1 (mm) | c2 (mm) | Tu (mm) | SKETCH ASME SEC.VIII Div.1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
¡¡ | KR (Çѱ¹¼±±Þ) |
| 5.464 | 3.83 | 0.900 | 0.636 | 7.00 | UG-32 FORMED HEADS, AND SECTIONS, PRESSURE ON CONCAVE SIDE (c) Ellipsoidal Heads With ts/L ¡Ã 0.002 (d) Torispherical Heads With t s /L ¡Ã 0.002. À§ ¼ö½ÄÀ» »ç¿ëÇϱâ À§ÇÑ Çʼö Á¶°ÇÀÓ ( 2:1 Ellipsoidal head and Dish Head ÇʼöÁ¶°Ç ÀÓ ) ts / L ¡Ã 0.002 tsMin = 0.002 * L + CA = 4.75 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LR (¿µ±¹¼±±Þ) |
| 6.001 | 4.58 | 0.900 | 0.099 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DNV-GL(³ë¸£¿þÀÌ) |
| 5.907 | 4.58 | 0.900 | 0.193 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Class-Nk(ÀϺ»¼±±Þ) |
| 4.502 | 3.33 | 0.900 | 1.598 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BV (ÇÁ¶û½º) |
| 6.938 | 5.50 | 0.562 | 0.0 | 7.50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ABS (¹Ì±¹¼±±Þ) |
| 4.501 | 3.33 | 0.900 | 1.599 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ASME (¾Ð·Â¿ë±â) |
| 4.501 | 3.33 | 0.900 | 1.599 | 7.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
4. [DD] 10% Dish Head | at Operation T (mm) | at Test T (mm) | c1 (mm) | c2 (mm) | Tu (mm) | SKETCH ASME SEC.VIII Div.1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
¡¡ | KR (Çѱ¹¼±±Þ) |
| 8.786 | 6.79 | 0.714 | 0.0 | 9.50 | UG-32 FORMED HEADS, AND SECTIONS, PRESSURE ON CONCAVE SIDE (c) Ellipsoidal Heads With ts/L ¡Ã 0.002 (d) Torispherical Heads With t s /L ¡Ã 0.002. À§ ¼ö½ÄÀ» »ç¿ëÇϱâ À§ÇÑ Çʼö Á¶°ÇÀÓ ( 2:1 Ellipsoidal head and Dish Head ÇʼöÁ¶°Ç ÀÓ ) ts / L ¡Ã 0.002 tsMin = 0.002 * L + CA = 4.75 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
LR (¿µ±¹¼±±Þ) |
| 9.564 | 7.67 | 0.900 | 0.036 | 10.50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DNV-GL(³ë¸£¿þÀÌ) |
| 9.376 | 7.67 | 0.624 | 0.0 | 10.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Class-Nk(ÀϺ»¼±±Þ) |
| 6.531 | 5.14 | 0.900 | 0.069 | 7.50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BV (ÇÁ¶û½º) |
| 9.376 | 7.67 | 0.624 | 0.0 | 10.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ABS (¹Ì±¹¼±±Þ) |
| 6.529 | 5.14 | 0.900 | 0.071 | 7.50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ASME (¾Ð·Â¿ë±â) |
| 6.529 | 5.14 | 0.900 | 0.071 | 7.50 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
No. | Liquid | Boiling Point Temperature | Latent Heat of Vaporization Áõ¹ßÀá¿ L=h(vapor)-h(liquid) | Density of Liquid at Boiling Point | ASHRAE NO | Enthalpy (Vapor) | Enthalpy (Liquid) | |
(¡É) | (K) | (KJ / kg) | ¥ñ , (kg / m©ø) | h, (kJ/kg) | h, (kJ/kg) | |||
1 | LNG(CH4 Methane) | -163 | 110.15 | 510.83 | 422.4 | R50 | 510.83 | 0 |
2 | ÇÁ·ÎÆÇ (Propane) | -42.11 | 231.04 | 425.59 | 580.9 | R290 | 525.95 | 100.36 |
3 | ºÎź (Butane) | -0.49 | 272.66 | 385.71 | 601.3 | R600 | 584.58 | 198.87 |
4 | ÇÁ·ÎÇÊ·» ( Propylene ) | -47.69 | 225.46 | 439.16 | 609.1 | R1270 | 529.3 | 90.14 |
5 | ¾Ï¸ð´Ï¾Æ (Ammonia ) | -33.33 | 239.82 | 1369.5 | 682 | R717 | 1418.26 | 48.76 |
7 | Liquid Oxygen »ê¼Ò | -183 | 90.15 | 213.06 | 1141.2 | R732 | 79.69 | -133.37 |
8 | ¾×ÈÁú¼Ò LN2 | -195.8 | 77.35 | 199.18 | 806.1 | R728 | 77.16 | -122.02 |
9 | ¾×üÀÌ»êÈź¼Ò LCO2 Liquid carbon dioxide | -37.0 | 236.15 | 316.92 | 1101.0 | R744 | 435.9 | 118.98 |
10 | ¾Æ¸£°ï | -185.8 | 87.35 | 161.14 | 1395.4 | R740 | 43.62 | -117.52 |
11 | Çï·ý | -268.9 | 4.25 | 20.75 | 124.73 | R704 | 30.59 | 9.84 |
12 | ¾×ȼö¼Ò (LH2) (Parahydrogen) | -252.8 | 20.35 | 443.9 | 70.8 | R702p | 189.5 | -254.4 |
No. | Insulation Material | SI Unit | Metric | Density | PART | REMARK (ASTM No.) |
k [W/m¡¤¡É] | k [kcal/h¡¤m¡¤¡É] | ¥ñ, kg/m©ø | ||||
1 | ¾×ȼö¼Ò Liquid Hydrogen Insulation | |||||
Perlite Vacuum Pressure = 0.01 Torr | 0.0019 | 0.00163 | 65 | All Vessel | ||
(ÀϹÝÀûÀÓ) Perlite Vacuum Pressure = 0.05 Torr | 0.0021 | 0.00181 | 65 | All Vessel | ||
Perlite Vacuum Pressure = 0.10 Torr | 0.0035 | 0.00301 | 65 | All Vessel | ||
Perlite Vacuum Pressure = 0.5 Torr | 0.06 | 0.0516 | 65 | All Vessel | ||
Perlite Vacuum Pressure = 1.0 Torr | 0.14 | 0.1204 | 65 | All Vessel | ||
Perlite Vacuum Pressure = 760 Torr (atm) | 44.00 | 37.833 | 65 | All Vessel | ||
MLI ; Multilayer Vacuum Insulation | ||||||
1 | Steel Shell Plate (C/S) | 45.29885 | 38.95 | 7850 | Shell & Roof | ??? |
2 | PolyUrethane Foam (PUF) | 0.026749 | 0.023 | 40 | Shell & Roof | |
3 | Perlite | 0.044194 | 0.038 | 65 | Shell & Roof | |
4 | Resilient blanket | 0.026749 | 0.023 | 17.5 | Shell & Roof | |
5 | Pre-stressed concrete | 2.300414 | 1.978 | - | Shell & Roof | |
6 | Cellular glass | 0.043031 | 0.037 | 120 | Shell & Bottom | |
7 | ||||||
8 | Perlite Concrete Block (PCB) | 0.27 | 0.2322 | 1200 | Bottom | |
9 | Level Concrete | 0.29075 | 0.25 | - | Bottom | |
2 | Cellular Glass Block | 0.037216 | 0.032 | 120 | Bottom | |
10 | Dry sand | 0.157 | 0.135 | - | Bottom | |
11 | Level concrete | 0.29075 | 0.25 | - | Bottom | |
12 | Fiber Glass | 0.040705 | 0.035 | 24 | Roof Deck »ó´Ü |
No. | Insulation Material | SI Unit | Metric | Density | REMARK (ASTM No.) |
h [W/m©÷¡¤¡É] | h [kcal/h¡¤m©÷¡¤¡É] | ¥ñ, kg/m©ø | |||
1 | Liquid to Steel | 23.26 | 20 | - | |
2 | Air to Steel | 11.63 | 10 | - | |
3 | Air to concreate | 11.63 | 10 | - |
¹øÈ£ | ±¸ºÐ | h[kcal/h¡¤m¡¤¡É] | |
1 | °ø±â °¡¿, ³Ã°¢ | 1~50 | |
2 | ¹° °¡¿, ³Ã°¢ | 200~15000 | |
3 | ±â¸§ °¡¿, ³Ã°¢ | 50~1500 | |
4 | ¼öÁõ±â °ú¿ | 20~100 | |
5 | ¼öÁõ±â ¸·»ó ÀÀÃà | 4000~15000 | |
6 | ¼öÁõ±â ¹æ¿ï»ó ÀÀÃà | 50000~100000 | |
7 | À¯±â Áõ±â ÀÀÃà | 1000~2000 | |
8 | ¹° ²úÀ½ | 1500~40000 |
Insulation System of PUF SPRAY type applicable to LPG/LEG/LNG liquidified cargi tank
Applicable to DECK TANK due to high environmental effect resistance
Construction is easy, and easy maintenance and repair
Relatively short construction period saves costs
Properties | Unit | Allowance | Test Method |
Sprayed density | kg/m©ø | 36 – 50 | ASTM D1622 |
Compressive strength | kg/cm©÷ | ¡Ã 1.7 | ASTM D1621 |
Tensile strength | kg/cm©÷ | ¡Ã 2.0 | ISO 1926:2009 |
Thermal conductivity at 20¡ÆC | W/mK | ¡Â 0.021 | ASTM C518 |
at 20¡ÆC aged 4 month | W/mK | ¡Â 0.023 | ASTM C518 |
Dimensional stability | vol% | ¡Â 1 | ASTM 2126 |
Closed cell content | % | ¡Ã 90 | ASTM D6226 |
Water absorption | g/100cm©÷ | ¡Â 3.0 | KS M 3809 |
Flammability | – | B2 | DIN 4102, Part 1 |
Properties | Unit | Allowance | Test Method |
Sprayed density | kg/m©ø | 50 – 56 | ASTM D1622 |
Compressive strength | kg/cm©÷ | ¡Ã 2.5 | ASTM D1621 |
Tensile strength | kg/cm©÷ | ¡Ã 2.8 | ISO 1926:2009 |
Thermal conductivity at 20¡ÆC | W/mK | ¡Â 0.022 | ASTM C518 |
at 20¡ÆC aged 4 month | W/mK | ¡Â 0.023 | ASTM C518 |
Dimensional stability | vol% | ¡Â 1 | ASTM 2126 |
Closed cell content | % | ¡Ã 90 | ASTM D6226 |
Water absorption | g/100cm©÷ | ¡Â 4.0 | KS M 3809 |
Flammability | – | B2 | DIN 4102, Part 1 |
No. | Description | Amount (USD) | Unit |
1 | ¡¡¡á Construction Budget | 5,805,317 | USD |
2 | ¡¡¡á Material Mobillization | 0 | |
3 | ¡¡ | 0 | |
4 | ¡¡¢Â Grand Total | 5,805,317 | USD |
5 | ¡¡ | 0 | |
6 | ¡¡ | 0 | |
7 | ¡¡¡Ý Total Weight | 10,033 | Tons |
8 | ¡¡ | 0 | |
9 | ¡¡¡Ý Construction Period | 13 | month |
10 | ¡¡ | 0 | |
11 | ¡¡¡Ý Total ManHour | 956,040 | MH |
12 | ¡¡ - Indirect ManHour | 66,060 | MH |
13 | ¡¡ - Direct ManHour (Erectioin) | 745,160 | MH |
14 | ¡¡ - Direct ManHour (Painting) | 144,820 | MH |
15 | ¡¡ | 0 | |
16 | ¡¡¡Ý Total ManMonth | 1,729 | MM |
17 | ¡¡ - Indirect ManMonth | 317 | MM |
18 | ¡¡ - Direct ManMonth (Erection) | 855 | MM |
19 | ¡¡ - Direct ManMonth (Painting) | 557 | MM |
20 | ¡¡ | 0 | |
21 | ¡¡¡Ý Estimate rate for construction | 0 | |
22 | ¡¡ - Based weight : | 579 | USD/Ton |
23 | ¡¡ - Based MH : | 6 | USD/MH |
24 | ¡¡ - Based ManMonth : | 3,358 | USD/MM |
Items | Description | Manhours | % | Amount(USD) | Remarks | Excel Sheet Name |
1 | Indrect Manpower | 66,060 | 6.78% | 393,637 | Indirect Manpower | |
2 | Direct Tank Erection Manpower | 745,160 | 28.22% | 1,638,160 | Tank Erection Work | Direct Manpower |
3 | Direct Painting Manpower | 144,820 | 3.42% | 198,610 | Field Painting Work | Direct Manpower |
Manpower cost except for allowance | 38.42% | 2,230,407 | ||||
4 | Erection Equipment | 21.11% | 1,225,680 | Only Tank Erection | Major Equipment | |
5 | Painting Equipment | 2.29% | 132,719 | Only Painting Work | Major Equipment | |
6 | Deiesel for Erection Equipment | 0.62% | 35,778 | For All Tank Erectioni | Fuel & Utility | |
7 | Diesel for Painting Equipment | 0.20% | 11,770 | For All Tank Painting | Fuel & Utility | |
8 | Fuel and Utilities (Gasoline, LPG, Oxygen, etc.) | 0.71% | 41,458 | For All Tank Erection, Painting, Others | Fuel & Utility | |
Equipment and utilities | 24.93% | 1,447,405 | ||||
9 | Welding Electrode, cable, and others | 5.45% | 316,630 | Tank Erection Only | Electrodes | |
10 | Consumable for Tank Erection | 3.21% | 186,290 | Tank Erection Only | Electrodes | |
11 | Consumable for Painting | 0.52% | 30,420 | Blasting and Painting Only | Electrodes | |
12 | NDE with Matrials | 0.71% | 41,433 | RT, MT, PT, UT, TOOLS(Inspection) | NDE with Material | |
13 | Jig | 2.07% | 120,396 | Jig & Tools | ||
14 | Tools | 3.08% | 178,995 | Jig & Tools | ||
Consumables and tools | 15.06% | 874,164 | ||||
15 | Hydro-Test | 1.04% | 60,562 | Hydro-test | ||
16 | Sub-Contractor Items | 3.69% | 214,478 | PWHT, Insulatio, Calibration, and others | Sub-Contractor Item | |
Sub-contractor and others | 4.74% | 275,040 | ||||
17 | Safety activity | 0.77% | 44,499 | Safety | ||
18 | Security guard | 0.31% | 17,800 | For Jobsite Security Only | Safety | |
19 | Hospital | 0.46% | 26,699 | Safety | ||
20 | Other safety activity | 0.77% | 44,499 | Safety | ||
Safety activity | 2.30% | 133,497 | ||||
21 | Site Office Supplies | 1.03% | 59,844 | Site office supplies | ||
22 | Camp Operation expense | 11.71% | 679,703 | Camp for labor | ||
23 | Insurance, Bond, Legal Expenses | 0.00% | Insurance, Bond, Ex | |||
24 | House Allowance | 0.60% | 34,580 | Indirect Manpower | ||
25 | Food Allowance | 0.90% | 51,980 | Indirect Manpower | ||
26 | Transporatation rental fee (Car/Pick-up/Bus/Truck) | 0.32% | 18,699 | Major Equipment | ||
27 | Demob./Incentive | 0.00% | Indirect Manpower | |||
Allowance and Insurance | 14.55% | 844,805 | ||||
29 | 0.00% | If required, make it | ||||
30 | 0.00% | |||||
31 | 0.00% | |||||
32 | 0.00% | |||||
33 | 0.00% | |||||
34 | 0.00% | |||||
35 | 0.00% | |||||
36 | 0.00% | |||||
37 | 0.00% | |||||
38 | 0.00% | |||||
39 | 0.00% | |||||
40 | 0.00% | If required, make it | ||||
Grand Total | 100.00% | 5,805,318 |
